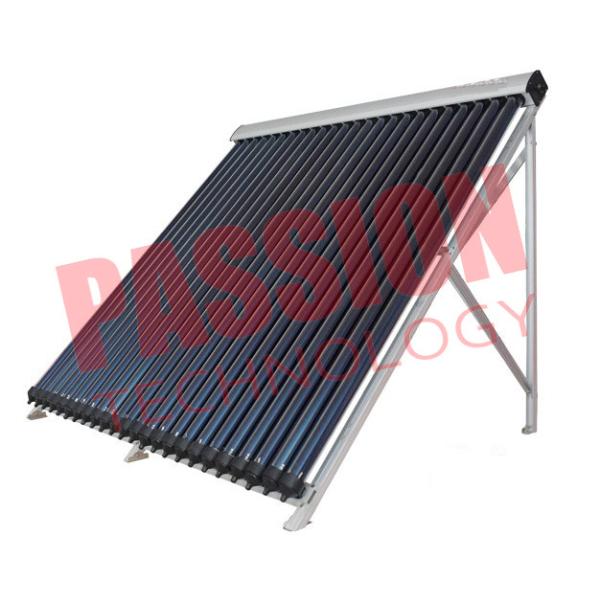

Hotel Flat Roof Used Concentrated Evacuated Tubes Heat Pipe Solar
Collector for Split Heating System
Heat pipe solar collector working principle
1) Solar absorption: solar radiation is absorbed by the solar tubes
and converted into heat.
2) Solar heat transfer: heat pipes conduct the heat from within the
solar tube up to the
header pipe.
3) Solar energy storage: water is circulated through the header,
via intermittent pump cycling.
Each time the water circulates through the header, the temperature
is raised by 5-10C.
Throughout the day, the water in the tank is gradually heated.
Features:
1. The water can be heated by the heat pipe rapidly.
2. Save place and easy to install.
3. Perfectly combined with architecture.
4. No water flow into the vacuum tubes, the tube won't break in
winter.
5. Stable performance. It can still operate in the event of
occasional tube breakage.
6. The water tank need not be installed higher than the collector.
7. Ideal for commercial solar water heating applications.
8. It is available whether the roof is pitch or flat.
9. Low maintenance effort.
Specifications:
1. inner manifold: stainless steel SUS304-2B.
2. outer manifold: PVDF
3. glass tube dimension: 47mm*1500mm 58mm*1800mm
4. heat preservation: 72hrs
5. hail resistance: 15mm
heat pipe solar collector Specification:
| Manifold(interior) | red copper |
| Manifold(exterior) | aluminum alloy |
| Flow channel size | 3/4 |
| Heat insulation layer | Rockwool 50mm |
| Aluminum fin | 1600 mm full length |
| Condensor diameter | 14mm |
| Vacuum tube | 58*1800mm, SS-CU-AIN/ALN coating |
| Bracket | Aluminum alloy ,20/25/38/45/50 degree |
| Hail resistance | 25mm |
| Max pressure | 6 bar |
| Heat pipe | Anti-freezing > -35 °C |
| Daily efficiency | ≥55% |
Heat pipe solar collector loading information:
| Item No. | Solar Vacuum Tube | Absorber Area(m2) | Loading Qty / sets |
| qty / pcs | size / mm | 20GP | 40GP | 40HQ |
| PT-10 | 10 | Φ58X1800 | 1.7X1.12 | 140 | 262 | 323 |
| PT-12 | 12 | Φ58X1800 | 1.7X1.16 | 134 | 254 | 313 |
| PT-15 | 15 | Φ58X1800 | 1.7X1.26 | 120 | 245 | 291 |
| PT-20 | 20 | Φ58X1800 | 1.7X1.64 | 92 | 187 | 222 |
| PT-24 | 24 | Φ58X1800 | 1.7X2.10 | 82 | 165 | 195 |
| PT-25 | 25 | Φ58X1800 | 1.7X2.12 | 80 | 163 | 193 |
| PT-30 | 30 | Φ58X1800 | 1.7X2.38 | 69 | 140 | 166 |
Notes:
1.The goods are on the basis of FOB Shanghai terms or CIF.
2.Term of the payment: 100%T/T in advance for LCL.
30% T/T in advance,balance 70% after the receipting the copy of the
B/L.
3.Delivery time is 15 days for full container.
4.Package:all goods are in cartons for full container ,samples will
be in plywood case.
5.MOQ:Negotiation.
Packaging & Delivery
Packaging Details:
1. Standard export packing for FCL order.
2. Special packing for LCL order.
Delivery Detail:
10-15 days after receipt of deposit.
