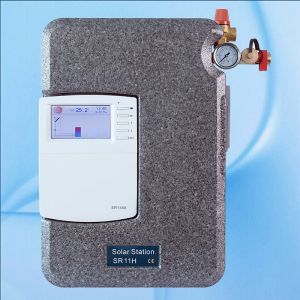

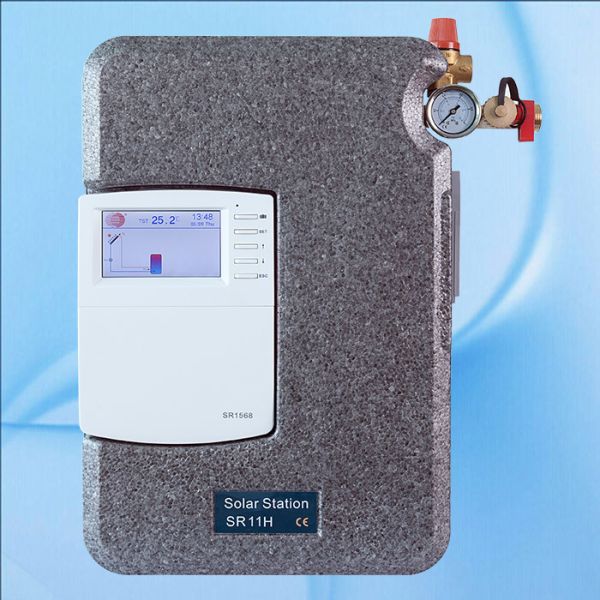

SR11H-1568 SR21H-1568 Solar Pump Station for Split Pressure Solar Water Heater

SR11H-1568 SR21H-1568 Solar Pump Station for Split Pressure Solar Water Heater

Station dimensions
 Height ( with insulation): 450mm
 Width (with insulation): 300mm
 Depth (with insulation): 158mm
 Distance center: 1600mm
 Distance axis/wall: 55mm
 Pipe connections: 3/4’ IT( inner
thread)
 Connection for expansion vessel
set: 3/4’ET,
 Outlet safety valve: 1/2 IT

Specification of components
1) Non-return valve: opening pressure 200mm H 2 O
2) Collector return connection: 3/4 female
thread
3) Safety valve: 6bar
4) Filling valve connection
5) Connection of expansion vessel: 3/4 male
thread
6) Manometer: 0-6bar
7) Sensor on tank return pipe: NTC10K,
B=3950
8) Circuit pump
9) Drainage valve connection
10) Grundfos flow rotor VFS or fixed flow meter
11) Tank return pipe connection (from tank) : 3/4 male thread
12) Tank flow pipe connection( to tank) : 3/4 female thread (no this component in single
pipe pump station SR11H)
13) Integrated solar controller (different models available)
14) Bubble air vent valve (no this component in single pipe pump station SR11H)
15) Temperature sensor of collector flow: NTC10K, B=3950 (no this component in
single pipe pump station SR11H)
16) Collector flow connection (to collector):3/4’ IT female thread (no this component in
single pipe pump station SR11H)

Material of pump station:
 Fitting: brass
 Seals: PTFE
 Insulation: EPP, λ= 0.041W/ (m.K)

Technical Data:
 Max. permitted pressure: 6bar
 Max. permitted operating temperature: 120 o C
 Grundfos flow rotor VFS: 0.1-20L/Min
 Mechanical flow rate: 2-8L/Min

1. Solar pump station with integrated controller
 Integrated solar controller ( model:SR1568/SR658)
 Outstanding design
 Safety assembly with safety valve
 High-Quality casing for reduce heat loses
 Flow rate check

1.1 Scope of delivery
 1* solar pump station
 1* integrated solar controller
 1* wall mounting bracket
 1* accessory bag
 1* manual

1.2 About this manual
This solar pump station is a preinstalled and leak-tested group of fitting for transferring
heat from the collector to the store. It contains important fittings and safety devices for
the operation of the solar thermal system:
 Ball valves in flow and return in combination with check valves to prevent gravity
circulation.
 Air stopper for manual bleeding of the solar thermal system
 Flow rate check for displaying the flow rate
 Manometer for displaying the system pressure
 Safety valve to prevent inadmissible overpressure
 Flushing and filling connector for flushing, filling and emptying the solar thermal
system.

Flat Panel Split Solar Water Heater

with Double Coils PTS-F2

Heat Pipe Split Solar Water Heater
with Double Coils PTS-H2
