    30khz Ultrasonic Cutting Machine Applied for Manual Operation or Automation System Thickness 1-7mm

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-C30
    Certification : CE Certificate
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 1000 pieces per month
    Delivery Time : 7 work days afer receiving the payment
    • Product Details
    • Company Profile

    30khz Ultrasonic Cutting Machine Applied for Manual Operation or Automation System Thickness 1-7mm


    30khz Ultrasonic Cutting Machine Applied for Manual Operation or Automation System Thickness 1-5mm


    Description:

    Ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.


    Specification:

    Model

    HS-C30

    Frequency

    30KHZ

    Output Power

    200W

    Generator

    Digital generator, 452 x 180 x 100mm

    Handle

    Φ44×220

    Size of cutter

    Blade replaceable

    Length of cable


    Outer skin

    Aluminum

    Weight

    8KG

    Voltage

    220V / 110V

    Accessory

    Foot switch1pc;
    Cut blade 5pcs;
    1.5mm special hex wrench 1pc;
    Screw M3×4L 2pcs

    Material of cutter

    Magnalium alloy, titanium alloy, stainless steel


    Application:
    • Aramid Prepreg

    • Boron Prepreg

    • Carbon Phenolic Prepreg

    • Fiberglass Prepreg

    • Graphite Prepreg

    • Hybrid Prepreg

    • Thermoplastic Prepreg

    • Unidirectional Tape

    • Aluminum Core Cured/Uncured Rubber

    • Foam Core Sealant

    • Nomex Core

    • Phenolic Core

    • Woven Fabric

    • Braided Materials


    Competitive Advantages:

    • The use of high power ultrasonic transducer vibrating element, ensure the long time stable working.

    • The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

    • Cutting all kinds of ordinary tool to cut products, solve production problems.

    • Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost.

    • Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool.

    • Installation, easy to use, almost does not change the original cutting process.

    • Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special.

    • Can use air-cooled, water-cooled design, adapt to various working conditions and environment.


    Problem and solution:

    Item

    Problem

    Cause description

    Solution


    Power switch to “I” the light is out

    Power plug loose

    Plugging in

    Power line break

    Fix it yourself or send back

    Power switch bad contact

    Fuse is broken

    Power light and

    running light are OK

    Air plug and socket not connected

    Tighten the connection position

    Handle have abnormal Sound

    Clean the card slot, use new

    blade

    Intermittently use, but the handle

    keeping hot

    Please send it back

    Out-put air plug break

    Screw loose

    Tighten the screw

    Running light is ok

    Running switch bad

    Please send it back

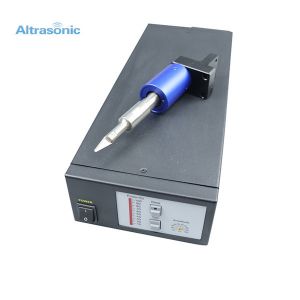

    Product display:
