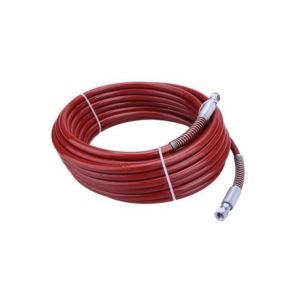

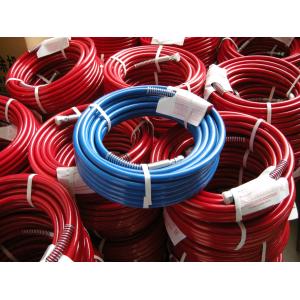

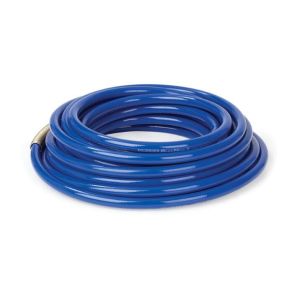

Airless Paint Spray Hose 3300psi
Features:
-- Light weight and flexible - over 10% lighter weight and
increased hose flexibility improves usability while spraying under
pressure.
-- Highest safety standards - conductive core meets the highest
wold-wide safety standards unlike competitive ground wire hose
designs.
-- Minimal hose coil memory - superior flexibility and reduced coil
memory provides ease of use during coiling and uncoiling.
-- Corrosion resistant - yellow zinc plated spring guards are more
corrosion resistant.
-- Available in a wide variety of lengths and diameters - 3/16 inch
(4.8 mm), 1/4 inch (6.3 mm), 3/8 inch (9.5 mm).
Technical Data:
Paint Hose…………………….. 1/4 in. x 15m
Fluid inlet fitting…………………. 3/4 in. internal thread (standard
garden hose thread)
Fluid outlet fitting………………. 1/4 NPSM external thread
Max. Pressure……………………..60Mp
Paint hose………. ultra-high molecular weight polyethylene (UHMWPE),
nylon, PVC, polypropylene, fluoroelastomer
| Size | Diameter (in*out) | Working pressure | Bursting pressure |
| inch | mm | Bar | psi | Bar | psi |
| 1/4" | 6.3X13.3 | 400 | 5800 | 1450 | 21000 |
| 1/4" | 6.3X12.7 | 340 | 4930 | 1360 | 19270 |
| 5/16" | 7.9X14.9 | 380 | 5500 | 1300 | 18850 |
| 5/16" | 7.9X15.0 | 310 | 4495 | 1240 | 17980 |
| 3/8" | 9.5X18.0 | 250 | 3625 | 1000 | 14500 |
| 1/2" | 12.7X21.6 | 220 | 3190 | 880 | 12760 |
| High pressure spray hose assembly |
| NO. | Size(ID*OD) (mm) | Length(m) | color | fittings | Thread | spring guard |
| 1 | 6.3*12.3 | 15 | dark blue | 22611D-04-04 | G1/4"*19 | Yes |
| 2 | 6.3*13.3 | 10 | blue | 20711-14-04(M14*1) | M14*1 | Yes |
| 3 | 6.3*13.3 | 0.5 | red | 21611D-04-04 | NPSM 1/4"*18 | Not Use |
| 4 | 6.3*13.3 | 13 | dark red | 21611D-04-04 | NPSM 1/4"*18 | Yes |
| 5 | 6.3*13.3 | 15 | dark red | 21611D-04-04 | NPSM 1/4"*18 | Yes |
| 6 | 6.3*12.3 | 15 | dark red | 21611D-04-04 | NPSM 1/4"*18 | Yes |
| 7 | 9.5*18 | 15 | blue | 21611D-04-04 | NPSM 1/4"*18 | Yes |
