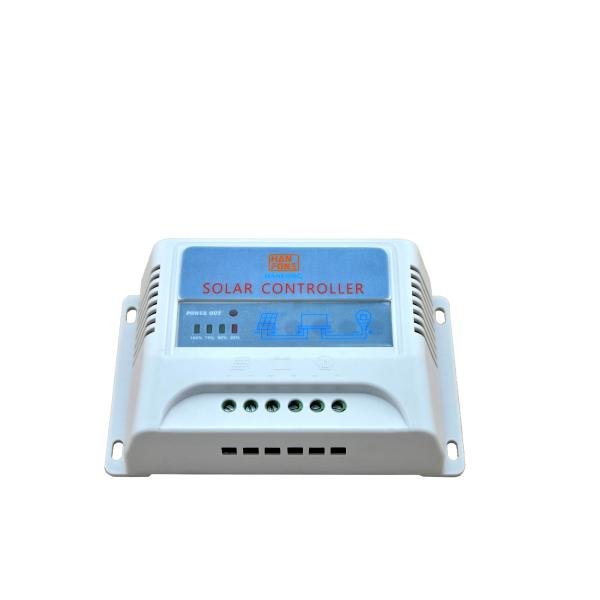

Sky Blue MMPT Solar Charge Controller 15A 12V / 24V Motor
Controller Transform Sun Power To Electrical Energy Battery
Distinction Of SWP And MPPT
The MPPT controller is more complex (more expensive): it will
adjust the input voltage to obtain the maximum energy from the
component, and then through the charging voltage transformer into
the battery needs, so it cuts off the direct connection component
and battery, rechargeable battery components, from high voltage to
low voltage group such as component the output of 36V, can be
connected to the 12V cell by MPPT.
PWM is actually equivalent to the switch component and the battery
are connected together, the results is the component of the voltage
is lowered to close to the battery voltage.
Specification Of MMPT Solar Charge Controller (SMP-15)
| Model | SMP 10A | SMP 15A | SMP 20A |
| Battery voltage | 12/24 V Auto Select | 12/24 V Auto Select | 12/24 V Auto Select |
| Maximum battery current | 10A | 15A | 20A |
| Maximum PV power,12V 1a,b) | 150W (MPPT range 15V to 75V) | 175W (MPPT range 15V to 75V) | 300W (MPPT range 15V to 75V) |
| Maximum PV power,24V 1a,b) | 300W (MPPT range 15V to 75V) | 350W (MPPT range 15V to 75V) | 600W (MPPT range 15V to 75V) |
| Maximum PV open circuit voltage | 75V |
| Peak efficiency | 98% |
| Self consumption | Less than 10mA |
| Charge voltage 'absorption' | Default setting 14.4V/28.8V |
Features:
●Ultra fast Maximum Power Point Tracking (MPPT)
●Advanced Maximum Power Point Detection in case of partial shading
conditions
●Extensive electronic protection
●Internal temperature sensor
●Adaptive three step charging
●Auto battery voltage recognition
●Flexible charge algorithms
●PV reverse polarity protection
●PV reverse current protection
