20km Mavlink/SBUS two way data and video Ethernet COFDM transmitter for UAV/SUV

5km RS232 two way data and video Ethernet COFDM transmitter for UAV/SUV

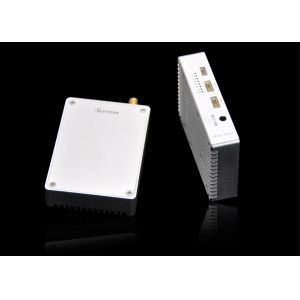

ST5NPT is a COFDM wireless communication equipment based on standard. It supports 2.4GHz(2. 402~2. 478 GHz) and suitable for long distance, high code stream and wireless transmitting application. The transmitting rate up to be 70Mbps and the farthest transmission distance is 5km air to ground.

This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.

Features

• Small size, low power consumption, adapt to industrial-grade ultra-low and ultra-high temperature environment
• Support Mavlink
• Transmitting rate: 70Mbps, air to ground 5km
• Support: 2.4GHZ(2.402 - 2.478 GHz) COFDM
• Transmitting Power: 400mW
• Mode: Point to Point and Point to Multi-point
• Frequency Bandwidth: 2Mhz/20Mhz Adjustable
• Support AES encryption
• Support SBUS,PPM,TTL
• Communication Latency: ≤1ms
• RJ45+TTL bidirectional serial port. The serial port can match external S1and S2 module
• Combine video and data transmission into one link to send and receive.

Parameter
