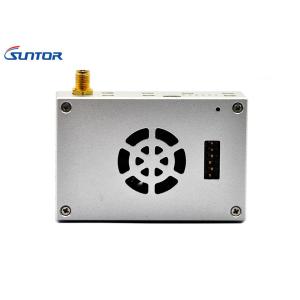

RF1W HD 1080P Wireless Drone Video and Data Sender Receiver with
TTL Serial port
CD11HPT Drone Video Transmitter & Receiver Specifi...
Description
CD11HPT is a mini HD Video and Data transmission COFDM system for
UAV. It develops CABAC (h.264) coding&decoding technology to
achieve Utra-high resolution(1080P), long distance(air to ground
10km) and low delay(12-25ms) transmission. The system supports
two-way(data&image) communication, adjustable video resolution,
bit rate output with the TPlayer software. It can realize the soft
decoding with low delay. Meanwhile this SUNTOR series products have
small size, light-weight, low consumption, high stability and high
sensitivity. They are suitable various environment of different
application.
Features:
- Zero delay videos wireless transfers prototypes
- Diffraction & through-wall ~ support point to point, point to
multipoint
- Two way image & data & voice transmission
- Small size, low consumption, high/low temperature resistance
(industrial level)
- Support the High Definition Multimedia Interface input/output and
SBUS, PPM, TTL
- Support image transmission & data transmission , combined multiple
radio links
- Support 100Mbps Ethernet to output
- 1080P/300 meters altitude up to 10 km transmission distance
- The video is clear and stable, has no mosaic or drag phenomenon.
Suntor’s HPT Series tiny video transmitters offer many innovative
features, are designed to withstand harsh environments, and are
ideal for Drones, UAV, and other applications requiring high
efficient, high quality video/data transmission in a compact,
rugged package.
HPT transmitters may be configured with fixed RF output powers of
400 mW, 1 Watt, or 1.5 Watts. Transmitters may be optionally
configured with remotely selectable power levels utilizing any of
these three power levels. Suntor’s proprietary power-leveling
circuit ensures level output power over the entire frequency band.
Application
Parameters
| Modulation | COFDM |
| Dimensions | 72×47x19mm (antenna not included) |
| Net Weight | Tx:94g Rx: 98g (antenna not included) |
| Transmission Distance | Air to ground 10km |
| Working Frequency | 2.402-2.478GHz adjustable |
| Transmission Power | 1W (30dBm) |
| RF Bandwidth | 2/8/20MHz |
| Transmission Mode | point to point / point to multipoint |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Video Compressed Format | H.264 TS |
| Video input | High Definition Multimedia Interface / Ethernet |
| Resolution | Full HD 1080P |
| Interface | Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1 |
| Two-way function | Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication
module |
| Adjustment mode of bit rate | Software adjustment |
| Communication Channel Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Working Temperature | -40°C - 85°C |
| Working Voltage | DC7~18V Optional |
| Power Consumption | TX: 7Watts RX: 5Watts |
| Start-up time | < 30s |
| System Latency | ≤50ms |
