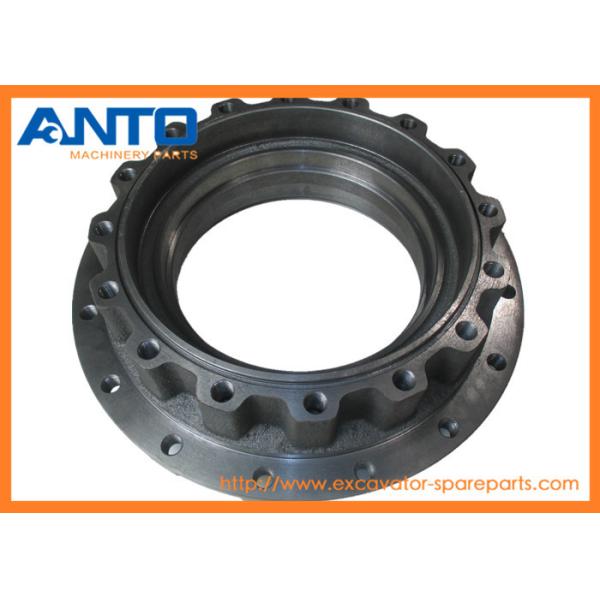

169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To 320C 320D Final Drive Parts

    Buy cheap 169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To  320C 320D Final Drive Parts from wholesalers

    Buy cheap 169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To  320C 320D Final Drive Parts from wholesalers
    • Buy cheap 169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To  320C 320D Final Drive Parts from wholesalers
    • Buy cheap 169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To  320C 320D Final Drive Parts from wholesalers

    169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To 320C 320D Final Drive Parts

    Ask Lasest Price
    Brand Name : OEM
    Model Number : E320C E320D
    Price : Negotiable
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    Supply Ability : 100-2000
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To 320C 320D Final Drive Parts


    • 169-5586 169-5585 191-3236 191-3235 Drum Hub Applied To 320C 320D Final Drive Parts

    • Spec Sheet

    PARTS NAMEE320C E320D Final drive hub
    EQUIPMENTE320C D Excavator
    egoryExcavator Final Drive
    ITEM CONDITIONNew
    AppliionReplacement
    MATERIALSteel
    PROCESSINGCasting
    MOQ1 pcs

    • Product photos


    • Parts Diagram

    INDIVIDUAL PARTS:

    1.7Y-1434[1] -
    SPACER (40X69.5X6-MM THK)
    2.096-1773 B[1] -
    SHIM (0.15-MM THK)
    096-1774 B[1] -
    SHIM (0.3-MM THK)
    096-1775 B[1] -
    SHIM (0.4-MM THK)
    096-1776 B[1] -
    SHIM (0.5-MM THK)
    096-1777 B[1] -
    SHIM (0.6-MM THK)
    096-1778 B[1] -
    SHIM (0.7-MM THK)
    096-1779 B[1] -
    SHIM (0.8-MM THK)
    096-1780 B[1] -
    SHIM (1-MM THK)
    096-1781 B[1] -
    SHIM (1.6-MM THK)
    11.6V-3303 M[14] -
    BOLT (M16X2X60-MM)
    12.7Y-0223[3] -
    SHAFT-PLANETARY
    13.094-1542[6] -
    BEARING-ROLLER
    14.7Y-1431[3] -
    GEAR-PLANETARY (30-TEETH)
    15.094-1528 M[6] -
    WASHER (53X84X1-MM THK)
    16.095-0891[6] -
    PIN-SPRING
    17.6I-6585[3] -
    GEAR-PLANETARY (44-TEETH)
    18.094-0616[3] -
    BEARING AS-ROLLER
    19.3E-2338[2] -
    PLUG-PIPE
    20.7M-8485[2] -
    SEAL-O-RING
    21.7Y-1426[1] -
    COVER
    22.7Y-0225[3] -
    SHAFT-PLANETARY
    23.094-0611[6] -
    WASHER (47.3X76X1-MM THK)
    24.094-0580[1] -
    PLATE (10-MM THK)
    25.6I-6583[1] -
    GEAR-SUN (13-TEETH)
    26.7Y-1430[1] -
    GEAR-SUN (17-TEETH)
    27.7Y-1558[1] -
    SPACER (90X119.6X7.5-MM THK)
    28.7Y-1432[1] -
    CARRIER
    29.7X-2568 M[16] -
    BOLT (M20X2.5X180-MM)
    30.8T-4123[16] -
    WASHER (3.62X5.75X0.375-MM THK)
    31.1U-8846 B-
    SEALANT-GASKET
    33.148-4705[1] -
    GEAR-RING (104-TEETH)
    34.7Y-1433[1] -
    CARRIER
    35.6D-0692[1] -
    SEAL-O-RING
    36.148-4715[1] -
    GEAR-COUPLING (55-TEETH)
    37.114-1539[6] -
    PIN-DOWEL
    38.191-3235[1] -
    HOUSING
    39.168-8451[2] -
    BALL BEARING
    40.114-1497[1] -
    SEAL GP-DUO-CONE
    41.191-3236[1] -
    HOUSING
    42.095-1270 M[2] -
    SETSCREW-SOCKET (M12X1.75X30-MM)
    43.148-4708[1] -
    GEAR-RING (79-TEETH)
    USE AS REQUIRED

    • Description

    The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


    Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.


    • Advantage

    1. The gear parts are built to fit to the genuine drive gearbox system.

    2. The gear parts are supplied strictly according to the genuine parts alog.

    3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

    4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

    • Warranty

    1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.


    2. Warranty type: replacement of the parts that have quality problem.


    3. Warranty is not valid for below s

    * Cutomer give wrong information about the order

    * Force Majeure

    * Wrong installation and operation

    * Rust because of wrong stock & maintenance


    • Packing & Delivery

    * Strong carton or wooden box for gear components. Wooden box for gearbox assembly

    * Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
