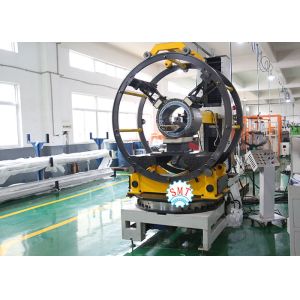

Four Working Station Automatic Stator Winding and Coil Inserting
Machine
(1) Main Technical Features
1# Main Features:
1. Suitable for different frame sizes big motor stator with case or
without case;
2. Adopting servo motor to control the inserting speed;
3. Working table and stator fixing shelf are easy to be rotated;
4. Machine can be operated by one operator, which improves the
production efficiency.
2# Range:
SMT-QL80 for frame size: 180~250
SMT-QL140 for frame size: 280~355
3# Production output
4~8sets of stators per day according to stator frame size and slot
fill factor
4# Tooling Changeover
1. OD is different, adjusting fixture directly.(15mins)
2. ID and slot shape is different, change the tooling.(Like
attached.)
3. Pole is different, change the fixture rotating angle by foot
switch, no need to change tooling.
(2) Our Service
Focusing on international trading, we have placed our priority on
both product quality and service, which are the key elements that
make your brand more competitive in the global market. If you are
looking for machines, components, or OEM products, SMT motor
Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your
esteemed company as a supplier, a partner and a friend. We warmly
welcome you from worldwide.
(3) OEM/ODM
Innovational technical team provides perfect complete technical
solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality,
rapid after-sale service door to door, to solve customer’s all
after-sale problems;
Wide spreaded domestic after-sale service service network stations
and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service
personnel dispel customer’s after-sale scruples 24 hours.
(4) Production Line Profile
With good service, professional team and reliable quality, SMT
provide customer with different kinds of AC motor, DC motor,BLDC
motor manufacturing technical consulting service and Turn-key
projecting service, including the motor cost evaluation,
manufacturing know-how, staff training,and complete turn-key
project.
(5) About Us
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the
high-tech key enterprises which specialize in designing, producing
and selling motor manufacturing equipments in China. The company
now has nearly 150 employees, including more than 30 engineers and
technicians, with the building area about 20,000 square meters and
a hundred sets of advanced production and test equipments. It is
now qualified for designing and manufacturing full production line
(starts from coil winding to final forming of a stator) for AC
motors such as home appliance motor, industrial medium and small
motors, pump motor, rolling door motor and automobile motor etc. In
2012, SMT passed the certification of ISO9001:2000 Quality
Management System.
