| Brand Name : | FLEXEM |

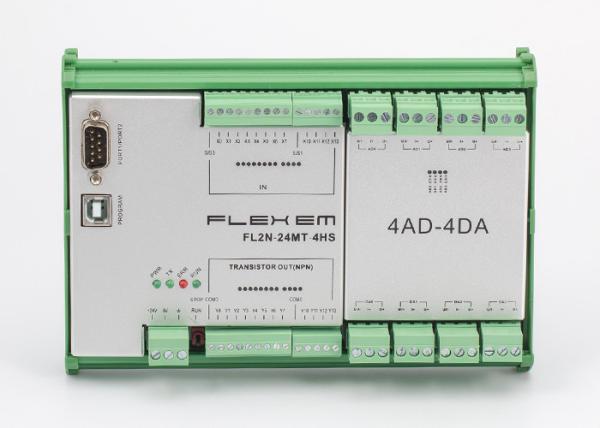

| Model Number : | FL2N-24MT-4HS |
| Certification : | CE |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 5000 pcs/week |
| Delivery Time : | 1-7 business days after payment confirmed |
Description:
* CPU: ARM CortexTM M3 CPU.
* Digital Input: Transistor input, supporting source drain type.
* Digital Output: NPN transistor output.
* High-Speed Input: 2-way AB input/4-way separate high-speed counting.
* High-Speed Output: 4-way high speed surge immunity output(100kHz x2, 50kHz x2)/(single-way output maximum 200kHz).
Specification:
| Communication Protocol | RS232 x1, RS485 x1, Supporting Mitshubish FX2N and Modbus RTU communication |
| Programming Port | USB connection |
| Components | Core components are imported with high quality |
| High-speed Input | 2-way AB input/4-way separate high-speed counting |
| High-speed Output | 4-way high speed surge immunity output(100kHz x2, 20kHz x2) |
| Bus Communication | N/A |
| PORT1/PORT2 | ||
| Pin1 | Rx-(B) (PORT2 RS485) |  |
| Pin2 | RxD (PORT1 RS232) | |
| Pin3 | TxD (PORT1 RS232) | |
| Pin4 | NA | |
| Pin5 | GND | |
| Pin6 | Rx+(A) (PORT2 RS485) | |
| Pin7 | NA | |
| Pin8 | NA | |
| Pin9 | NA | |
|   |
