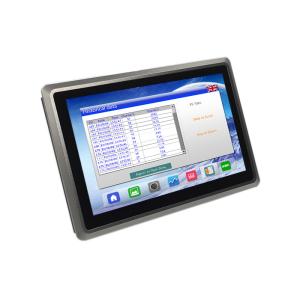

    7'' TFT LCD Resistive Touch Screen HMI Multi Touch With Isolated Power Supply

    Ask Lasest Price
    Brand Name : FLEXEM
    Model Number : FE4070CE
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 5000 pcs/week
    Delivery Time : 1-7 business days after payment confirmed
    • Product Details
    • Company Profile

    7'' TFT LCD Resistive Touch Screen HMI Multi Touch With Isolated Power Supply

    650g 24-bit color economic resistive 7 inch economic touch panel with isolated power supply


    Description:


    * 7" 800×480 TFT LCD.


    * ABS+PC, plastic enclosure and with only 38mm thickness.


    * Industrial Isolated Power Supply module, 4 Serial Ports.


    * USB 2.0 Device Port and high-speed software downloading.


    * USB Host, Supporting USB Disk/USB Keyboard/Mouse expanded device etc.


    * SD Card supporting.


    * The mainboard is with spray coating treatment, adapt to harsh industrial environment.



    Specification:


    SD Card

    Supporting

    Ethernet

    10M/100M

    Dimension

    204mm×145mm×44.5mm

    Shell Material

    ABS+PC

    Weight

    About 650g


    1.Power Terminals
    Pin1DC24V
    Pin20V
    Pin3FG
    2.COM1/COM3
    Pin1Rx-(B)
    Pin2RxD_PLC (COM1 RS232)
    Pin3TxD_PLC (COM1 RS232)
    Pin4Tx-
    Pin5GND
    Pin6Rx+(A)
    Pin7RxD_PLC(COM3 RS232)
    Pin8TXD_PLC(COM3 RS232)
    Pin9Tx+
    3.COM2/COM4
    Pin1Rx-(B)
    Pin2RxD_PLC (COM2 RS232)
    Pin3TxD_PLC (COM2 RS232)
    Pin4Tx-
    Pin5GND
    Pin6Rx+(A)
    Pin7RxD_PLC(COM4 RS232)
    Pin8TXD_PLC(COM4 RS232)
    Pin9Tx+
