Widely Used Solor Strut Roll Forming Machine Profile Thickness
1.5-2.5mm
Make the four sizes in one machine
TECHNICAL SPECIFICATION
A, Technical Parameter:
Forming thickness: 1.5-2.5mm,galvanized coils yield
strength≤G250MPa
working speed: 14M/min(not include cutting and punching stop time)
Hydraulic punching device: 1 set
roller stations: about 16 station main roller
levelling device: 7 roller levelling
material of roller: bearing steel, quenching treatment.
material of main shaft: 45# fine steel,
diameter of main axis: ￠75mm
main motor power: 7.5kW
motor power of hydraulic station: 4KW
hydraulic station pressure: 12MPa
electric control system: whole line adopted PLC control, Panasonic
PLC
cutting type: hydraulic drive, cut after forming
material of cutting blade: Cr12 , quenching process
B,Main structure and characters:
This channel machine is composed by 3T passive uncoiler punching
station, main forming machine,cutting unit, hydraulic
station,computer cabinet,output table.
One machine can produce several shape products as panel profile.
The different size of channel is adjusted by the spacers between up
and downside rollers. Because the design of these spacers is half
circle, then two joint together, so when adjusting, needn’t remove
the rollers, so it is very easy and convenient.
Due to cutting after forming, so when change different
specification, need to change the cutting mould.
C, Flow Chart:
Uncoiling – infeed guiding – levelling - punching – roll forming –
hydraulic cutting – output table

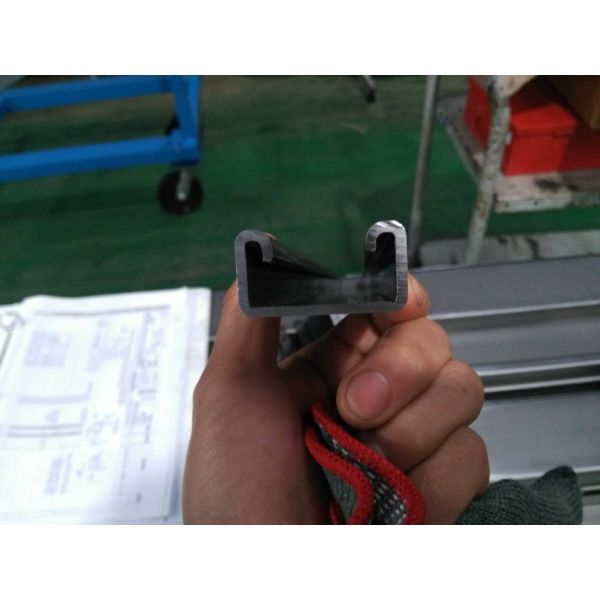

Profile samples
Machine products
