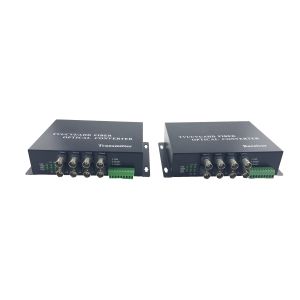

8-ch Digital HD-CVI Video Fiber Optical Converter+1Ch RS485 data
2. Features
« 4-ch HDSDI
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M
(540Mb/s),M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T
G.694.2 compliant)
« 150m automatic cable equalization, all the 1.485 Gb / s rate
below(Belden 1694A)
« Optional network management system
« LED status indicators monitor the critical parameters
« Optional network system
« Support hot swap
« Stand-alone, 1U rack mount and 4U rack mount
3. Specifications
a) Serial TV, BNC input
Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI,
DVB-SSI and Telecom/Datacom rate(19.4Mb/s - 1.485Gb/s)
Input number: 4
Reflection loss: >15DB
Equilibrium: 0-150m @1.485Gb/s
Connector: 75Ω BNC
b) Optics
Channel: 1
Type: single-mode (multimode optional)
Wavelength: 1310nm /1550nm
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
c) Serial TV, BNC output (EO/OE)
Channel: 4
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
d) Power and environmental indication
Operating temperature: -45°C~+50°C
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours
e) Other
Dimension: 173mm ×276mm ×40.6mm
Weight: 2Kg
4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
Product Display:
Our Advantage:

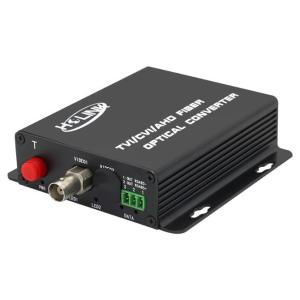

HDCVI/HDTVI/AHD Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission
technologies which convert the HDCVI composite signals to optical
signals to achieve long distance(as far as 80Km) transmission
through fibers.
