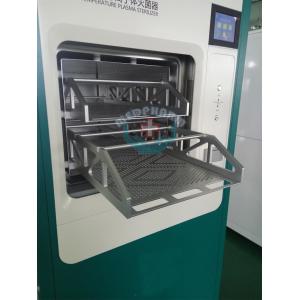

Low Temperature Plasma Sterilizer With Hydrogen Peroxide
Application:
The sterilizer is applicable to sterilize the medical instruments
that are thermo labile or nonmoisture tight.
It is not applicable to the sterilization of liquid, powder or
cotton fabrics. All the medical instruments that
meet the following conditions can be processed by this type of
sterilizer.
| Model No. | FPS-A-I |
| Door-Opening Mode | Double Door(Single Door Customizable) |
| Sterilization Warehouse Shape | Rectangle |
| Compartment Size ( Width x Height x Depth) | 550x 445x900mm |
| Compartment Capacity | 220L |
| Useable Capacity | 200L |
| Boundary Dimension ( Width x Height x Depth) | 932x1775x1098mm |
| Built-in Sterilization Procedures | Standard Procedures |
| Min Installation Space | 1500*1300mm |
| Min Maintenance Distance | 1000mm |
| Min Distance between Back Cover and Wall | 150mm |
| Installation Environment Temp. | 10~40℃ |
| Power Supply | 220V/50Hz |
| Power | 3.5KW |
| Weight | 600KG |
Product features:
Low temperature sterilization
The sterilization temperature is 50±5℃ which is much lower than
steam sterilization. It is dry sterilization that has
no harm on instrument, so it extends the device service life.
Safe and environment friendly
The matter after sterilization is water and oxygen molecule that
have no toxic harm to staff or patient, and there
is no need for drainage or air exhausting. High efficient H2O2
filter is installed in the exhausting outlet to guarantee
no H2O2 pollution to the environment.
Convenient
Only power supply is needed for installation. The system adopts
man-machine control interface with intelligent
program design. Equipped with foot switch (optional) and integrated
biological incubator (optional).
Multiple models
The door structure of the sterilizer is customizable (single or
double door). To meet pharmaceutical factory needs,
chamber material can be stainless steel.
Reliable sterilization
The chamber adopts alloy material which has good thermal
conductivity to guarantee a stable temperature in the
chamber. The purification system makes the H2O2 diffused uniformly.
The low temperature storage system
provides a stable concentration of H2O2.
Safe sealing door
The sterilizer adopts mandrill-driving auto overhead door with
reliable sealing function and safe lock device to
guarantee personal safety.
Data management
The 2048M storage (optional) can store original data for inquiring.
Mini printer can be used to print operation data
timely. There are two types of record methods to guarantee the data
is 100% acquirable.
Advanced configuration
The vacuum pump, controller, pressure transmitter and other key
components are world famous brand. The
sterilizer equipped with multiple programs and bar code
identification system (optional).
Reassuring
We provide comprehensive operation training materials to key
components maintenance intelligent reminding system for your
convenience.
