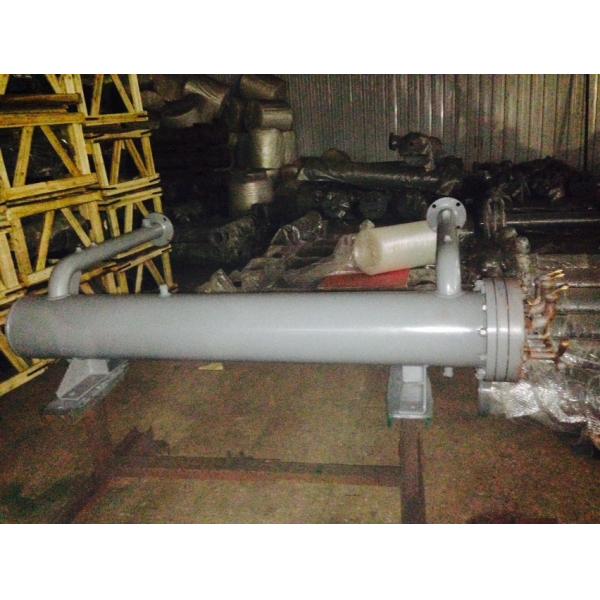

Water Cooling U Tube Shell And Tube Heat Exchanger 18KW~4000 KW Cooling Capacity

    Buy cheap Water Cooling U Tube Shell And Tube Heat Exchanger 18KW~4000 KW Cooling Capacity from wholesalers

    Buy cheap Water Cooling U Tube Shell And Tube Heat Exchanger 18KW~4000 KW Cooling Capacity from wholesalers
    • Buy cheap Water Cooling U Tube Shell And Tube Heat Exchanger 18KW~4000 KW Cooling Capacity from wholesalers

    Water Cooling U Tube Shell And Tube Heat Exchanger 18KW~4000 KW Cooling Capacity

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXU56S6
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Water Cooling U Tube Shell And Tube Heat Exchanger 18KW~4000 KW Cooling Capacity

    U shaped tube Shell and Tube Heat Exchanger


    Water - Cooled Evaporator

    The product is also known as tube heat exchanger. Is a wall-type heat exchanger which is a wall-side heat


    exchanger which is closed to the wall of the tube bundle in the casing as a heat transfer surface. This kind


    of heat exchanger structure is simple, reliable operation, can use a variety of structural materials (mainly


    metal materials), can be used in high temperature, high pressure, is currently the most widely used type.


    Shell and tube heat exchanger materials are generally carbon steel, stainless steel and copper-based, in


    which carbon steel tube plate as a cooler, the tube and tube pipe welds often appear corrosion leakage,


    spill into The cooling water system pollutes the environment and causes material waste. Shell and tube


    heat exchanger due to the internal and external fluid temperature is different, so the heat exchanger shell


    and tube bundle temperature is also different.


    Shell and tube heat exchanger has a number of layers of good thermal conductivity of the material formed


    by the principle of working together with the water heater is similar to the water heater is generated by the


    combustion of heat and heat exchanger is a hot medium is not open fire, heat exchanger inside the two


    Pipe circuit, one is the heat source is the other is the heat source heat source is like a water heater


    burning flame such as hot water or steam. The heated source is like the heated water in the water heater.


    There is a heat source in the heat exchanger heat exchanger before the entrance of a control valve by


    changing the opening of the valve can be adjusted to the temperature of the heating source.


    U SHAPED TUBE DRY EVAPORATOR (DOUBLE MACHINE)


    CAPACITY: 35KW TO 95KW

    ModelsQXU35D6QXU47D6QXU56D6QXU65D8QXU80D8QXU95D8

    Rated data
    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW354756658095
    Kcal/h(×103 )30.240.448.256.768.881.7
    Wnm3 /h689.611.413.816.4
    Wmm3 /h1011.41214.51921
    Dpnbar0.270.410.350.390.420.46

    ModelsQXU35D6QXU47D6QXU56D6QXU65D8QXU80D8QXU95D8
    Dimension(mm)A127514071431143116311781
    B168168168168219219
    C107107161161200200
    D104011901030118013801530
    E200200200240240240
    VentS11/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/2
    ConnectionW(DN)505050506565
    D1(mm)161622222222
    D2(mm)222235353535
    P(kg)72788893125136

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature
