    Excavator Final Drive Gear Box Fit For 199-4579 227-6196 227-6189 227-6103 330C

    Ask Lasest Price
    Brand Name : OEM
    Model Number : 330C 330D 336D
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability : 100-2000
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Excavator Final Drive Gear Box Fit For 199-4579 227-6196 227-6189 227-6103 330C

    TAG 330C FINAL DRIVE 330C TRAVEL REDUCER 330C TRAVEL GEARBOX 330C EXCAVATOR FINAL DRIVE 330C TRAVEL MOTOR


    • 330C FINAL DRIVE 199-4579 227-6196 227-6189 227-6103 1994579 2276196 2276189 2276103

    • Spec Sheet
    Excavator spare parts namefinal drive gearbox
    Equipment Model330C
    Parts egoryexcavator final drive
    Spare parts ConditionBrand new, OEM quaity
    MOQ of order(PCS, SET)1 PCS
    Parts AvailabilityIn stock
    Delivery Lead time1-3 days

    • Appliion

    EXCAVATOR 330C

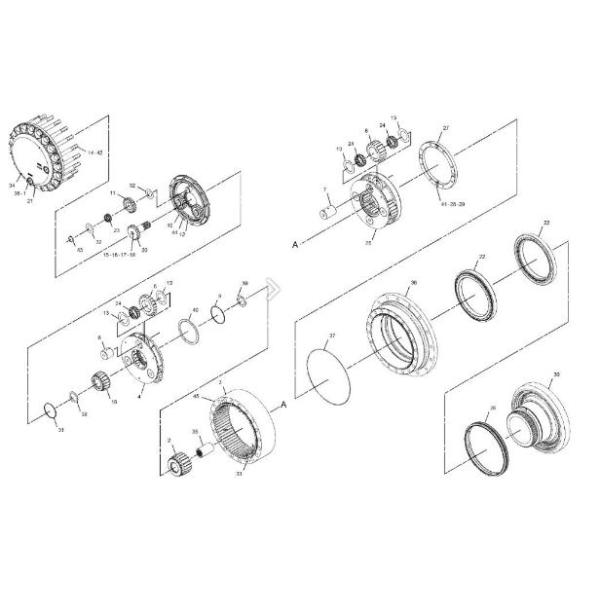

    • Parts Diagram

    1.3E-2338[2] -
    PLUG-PIPE
    2.7Y-0639[1] -
    GEAR-SUN (21-TEETH)
    3.7Y-0642[1] -
    GEAR-RING (63-TEETH)
    4.7Y-0645[1] -
    CARRIER
    5.7Y-0659[3] -
    GEAR-PLANETARY (22-TEETH)
    6.7Y-0661[3] -
    SHAFT-PLANETARY
    7.7Y-0662[4] -
    SHAFT-PLANETARY
    8.7Y-0663[4] -
    GEAR-PLANETARY (20-TEETH)
    9.7Y-0667[1] -
    RING-RETAINING
    10.7Y-0673[1] -
    GEAR-RING (73-TEETH)
    11.7Y-0676[3] -
    GEAR-PLANETARY (24-TEETH)
    12.7Y-0731[1] -
    CARRIER AS
    7Y-0656[3] -
    SHAFT-PLANETARY
    13.7Y-1094 M[14] -
    WASHER (66X102X1-MM THK)
    14.7Y-5235 M[20] -
    BOLT (M24X3X190-MM)
    15.094-0577 B[1] -
    PLATE (7-MM THK)
    16.094-0578 B[1] -
    PLATE (8-MM THK)
    17.094-0579 B[1] -
    PLATE (9-MM THK)
    18.094-0580 B[1] -
    PLATE (10-MM THK)
    19.110-7231[1] -
    GEAR-SUN (18-TEETH)
    20.191-2521[1] -
    GEAR-SUN (23-TEETH)
    21.191-2526[1] -
    COVER
    22.196-4873[2] -
    BEARING AS-BALL
    23.199-4582[3] -
    BEARING AS
    24.199-4583[11] -
    BEARING AS
    25.199-4750[1] -
    CARRIER-PLANETARY .
    26.213-4737[1] -
    SEAL GP-DUO-CONE
    27.227-6100[1] -
    RETAINER .
    28.227-6101[2] -
    PLATE-WASHER .
    29.227-6102[2] -
    DOWEL .
    30.227-6197[1] -
    HOUSING-MOTOR .
    31.093-1731[1] -
    RING-RETAINING
    32.094-0584[6] -
    WASHER (40.3X72X1-MM THK)
    33.095-0891[7] -
    PIN-SPRING
    34.096-3216 M[2] -
    SETSCREW-SOCKET (M12X1.75X12-MM)
    35.191-2645[1] -
    COUPLING
    36.199-4580[1] -
    HOUSING .
    37.2P-3628[1] -
    SEAL-O-RING
    38.7M-8485[2] -
    SEAL-O-RING
    39.7Y-0595[2] -
    SPACER (58X79.6X6-MM THK)
    40.7Y-0644[1] -
    SPACER (163X190X8-MM THK)
    41.8T-0293 M[2] -
    BOLT (M12X1.75X20-MM)
    42.8T-4167[20] -
    WASHER-HARD (26X44X4-MM THK)
    43.8T-4240[3] -
    RING-RETAINING
    44.9X-6032 M[12] -
    BOLT-SOCKET HEAD (M10X1.5X30-MM)
    45.1U-8846 B-
    SEALANT-GASKET
    227-6198 FY[1] -
    HOUSING GP-FINAL DRIVE


    • Product Photos


    • Description

    The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


    Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.


    • Advantage

    1. The gear parts are built to fit to the genuine drive gearbox system.

    2. The gear parts are supplied strictly according to the genuine parts alog.

    3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

    4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

    • Warranty

    1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.


    2. Warranty type: replacement of the parts that have quality problem.


    3. Warranty is not valid for below s

    * Cutomer give wrong information about the order

    * Force Majeure

    * Wrong installation and operation

    * Rust because of wrong stock & maintenance


    • Packing & Delivery

    * Strong carton or wooden box for gear components. Wooden box for gearbox assembly

    * Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
