    Computer Display Servo Control A universal testing machine (UTM)

    Ask Lasest Price
    Brand Name : GAOIXN
    Model Number : GX-8001
    Certification : ISO 9001:2008; QS-9000; CE
    Price : negotiation
    Payment Terms : FOB Shenzhen, L/C, T/T, Western Union,
    Supply Ability : 50 sets per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Computer Display Servo Control A universal testing machine (UTM)

    Computer Display Servo Control Universal Testing Machin, UTM


    Specifications:

    Model

    GX-8001

    Maximum load

    2kN,5kN,10kN,20kN (optional)

    Accurate

    1 grade

    Measuring accuracy

    The value ±1% / the value±0.5%

    Tester resolution

    Max load 1/100000, constant the resolution

    Effective testing width

    400mm (or can be widened as customers requirement )

    Effective tensile space

    650,800,1000mm (or can be increased the height according to customers requirement)

    Testing speed

    From 0.5 to 1000mm/min

    Unit

    kgf, gf, lbf, N, kN, Mpa, pa(optional)

    Accruacy of displacement measurement

    Tolerance: ±0.5%

    Accuracy of measured deformation

    Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

    Safety

    Electronic-limit protection

    Testing plat form moving device

    Fast /slow( two speeds to control) ,can jog

    Return Back

    Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

    Overload protection

    Overload 10%, automatic protection

    Fixture

    One set of tensile clamp

    Volume

    800*1000*2500mm (L*W*H)

    Motor

    servo motor and drive

    Power

    220V,50HZ or as the requirement

    Wattage

    0.66kW (different demand of force with different motor)

    Weight

    300 Kg(approx)


    Description:

    A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. The "universal" part of the name reflects that it can perform many standard tensile and compression tests on materials, components, and structures (in other words, that it is versatile).


    Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.

    Applicable industry:

    Tensile test machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.

    Pictures:

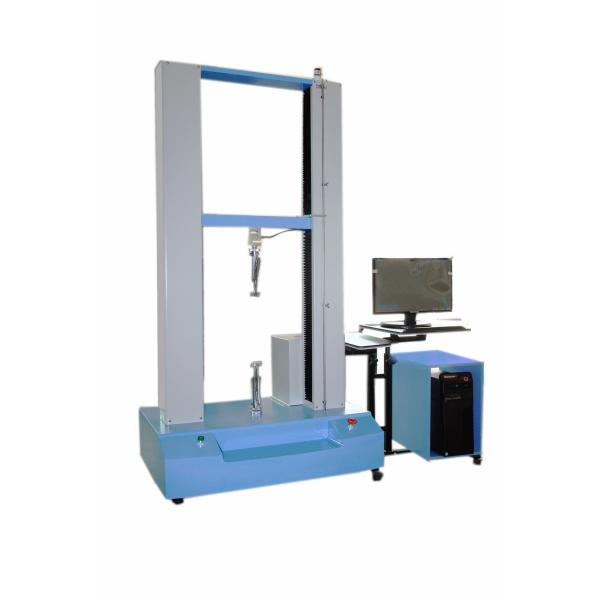

    Quality Computer Display Servo Control A universal testing machine (UTM) for sale
