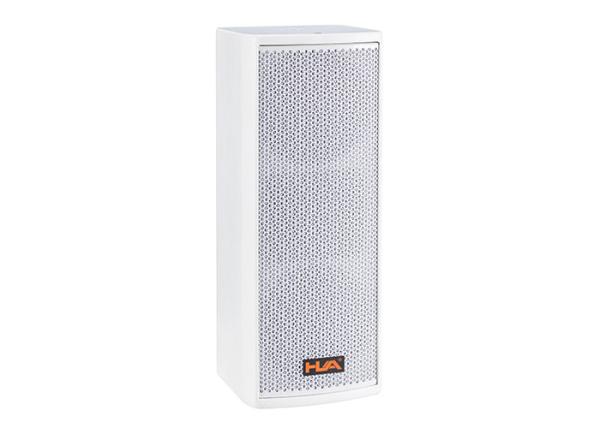

PA Line Array Column Speaker , 120W Min Column Active Line Array
Speaker
Description:
Digital Powered System:
Two Digital power amplifiers are built in SC-12B sub cabinet and
can output full range signals to drive SC-205 full-range speakers
Switchable Crossover Frequency
Crossover frequency are switchable in three points,
100Hz/150Hz/200Hz
More Accurate sound:
Crystal clear high frequency, tight and strong low frequency,
accurate sound reproduction, professional design ensure great
specifications such as distortion, frequency response, convert
rate, power supply band width and damping factor. This TC series
amplifier adopts higher frequency convert to obtain high resolution
of sound signal.
Easy to stack up:
Module design, flexible option based on applications, with bracket
sockets on the top and bottom of CL0306 speaker for junction. Three
kinds supporting hardware available: straight pole, support plate,
wall bracket.
Features
Comprehensive Protection:
1. Intelligent temperature controlled fans
2. Temperature Protection
3. Short-circuit, Over current Protection
4. DC Protection
5. Over/under- Voltage Protection
Applications:
Together with other SC series digital audio products such as
digital mixer, network audio platform, to make up digital audio
systems suitable for various applications.
Specification:
| Model | SC-205 |
| Frequency Range | 100Hz -20kHz |
| Sensitivity | 94dB |
| Maximum Peak SPL | 117dB |
| Driver | LF2x 5"+HF1x 1" |
| Nominal Impedance | 16Ω |
| Power Handling | 120W |
| Product dimensions(WxDxH) (mm) | 168 x 170 x 433 |
| Net Weight | 6.5KG |
