Timber Four sides planer with 5 spindles four side moulder
- Mainly use to make the 4 sides of wood block surface smooth
- use to produce wood mouldings
How to choose a four sides moulder?
- According to wood block different width.
| According to different working width choose machine. Such as 130mm
(SMB-4013). 150mm(SMB-4015), 160mm, 180mm, 200mm, 230mm |
| According to different requriement choose : 4 spindles, 5 spindles,
6 spindles. |
| In single surface the more spindles it means the more depth it will
cut . |
| According to different wood product, adjust machine's motor power |
What this four side moulder can do?
- wood mouldings
- wood block surface more smooth
Features:
1.Each main shaft is driven by independent electric motor,cutting
force is powerful
2.Main shaft is adjusted to focus on the front,operation is
convenient.
3.Hard chrome plating work table is durable.
4.Equips with auxiliary unit alarming lack of material,it effectively
improves smooth feed-in while lack of material.
5.Multi-group drive rollers improve feeding efficiency.
6.Pneumatic compressed feeding roller is applied,the pressing force
can be adjusted by stages which is favorable for smooth feeding of
timbers with different thickness.
7.Adopts central charging system,features convenience and promptness.
8.International brands electrical parts are applied for good
stability.
9.Spare parts are thick and solid to maintain high precision,high
stability and high reliability.
10.Completely sealed safety shield can avoid flying of saw dust and
isolate noise efficiently and protect operators.
11.The universal shaft system is designed specially for machining
various complicated products.

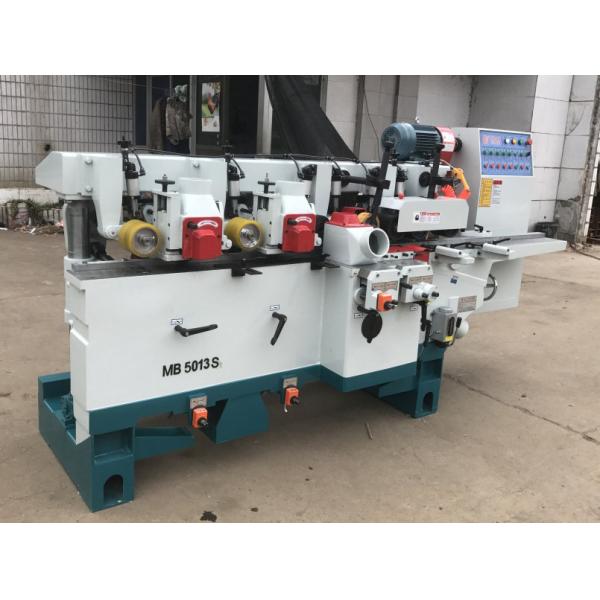

Four side planner pictures:
| Model | SMB-4013 | SMB-4015 |
| Working width | 20-130mm | 20-150mm |
| Working thickness | 8-100mm | 8-100mm |
| Feeding speed | 5-20m/min | 5-20m/min |
| Feeding power | 1.5kw | 2.2kw |
| Knife speed | 6000r/min | 6000r/min |
| Lower horizontal shaft power | 2.2-2.3kw | 2.2-2.3kw |
| Upper horizontal shaft power | 4kw | 4kw |
| Right side vertical knife arbor power | 2.2kw | 2.2kw |
| Cross beam lifting and lowering power | 0.37kw | 0.37kw |
| Total power | 12.47kw | 14.77kw |
| Max.turning circle | 115mm | 115mm |
| Total weight | 1400kg | 1400kg |
| Packing size | 2500*1400*1800mm | 2500*1400*1800mm |
| Model | SMB-6023 |
| Working width | 25-230mm |
| Working thickness | 8-140mm |
| Length of working table | 1800mm |
| Feeding speed | 7-28m/min |
| Spindle diameter | 40mm |
| Spindle speed | 6000r/min |
| Air pressure | 0.6MPa |
| The first lower shaft | 5.5kW |
| The first shaft | 7.5kW |
| The right vertical axis | 11kW |
| The left vertical axis | 11kW |
| The second shaft | 5.5kW |
| The second lower shaft | 5.5kW |
| Lifting beams | 0.75 kW |
| Feeding | 4 kW |
| The total power | 52.75kW |
| The right vertical axis | 125- 180mm |
| The left vertical axis | 125- 180mm |
| The first lower shaft | 125mm |
| The first shaft | 125- 180mm |
| The second shaft | 125- 180mm |
| The second lower shaft | 125- 180mm |
| Vacuum tube diameter | 140mm |
| Outside dimension (L*W*H) | 3961*1462*1776mm |
| Net weight | 3150kg |
4 sides surface planner solid wood spindle moulder with 6 spindles
max. working width 230mm
Machine with dust hood
