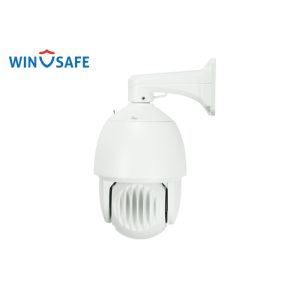

Full HD 2.0 Megapixel IP Network Auto Tracking IR Dome Camera
Product Overview
Network function
1. Adopt high-performance Hisilicon platform, stable and reliable
performance.
2. Support Ethernet control
3. Can view and control the image via IE browser and CMS software
4. Support NAS video storage, video can be broken network
downloads, maximum 8 NAS disk support.
5. Support two levels of user rights management, support for
authorized users and passwords, support HTTPS encryption and 802.1x
IEEE network access control.
6. Adopt H.264 high profile/M-JPEG dual encoding, video output
1080P+D1 ;
7. Support
multi-protocols:IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE
IR Function:
1. Minimum Illumination:0 Lux
2. 9pcs Array Led,IR Distance 120M
3. Infrared light with a magnification distance matching algorithm.
4. The constant current circuit design,Infrared ages can be reach
30 thousand hours.
System Function:
1. Adopt high-performance sensor, resolution achieve 1920x1280.
2. Precision motor-driven,keen responsive,smoothly operation,the
precision deviation less than 0.6 degree, the image does not have
any vibration under any speed.
3. Support API interface , Hikvision SDK ONVIF , PSIA, CGI
protocol.
4. Support English IE interface and operation tips function, user
friendly interface.
5. Support system dual backup function to ensure that the data not
lost.
6. Support pack function, when the camera in a certain period of
time no operation,camera will automatically turn to the guard
position monitoring.
7. support for lightning protection, anti surge, anti surge.
8. Protection grade: IP66.
Zoom module function
1. Support auto iris,auto focus, AWB and BLC.
2. Support low illumination,0.05Lux/F1.4(color),0.01Lux/F1.4(white)
3. Support 3D digital noise reduction,digital WDR function.
4. Effective pixels 2.0 million pixels (1080P).
5. 20x optical zoom
Technical Specification
| Model No. | WS-67FAT-W/P-200 |
| Camera | Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 2.0MP Pixels |
| Illumination | Color:0.05Lux@(F1.6, AGC ON), B/W:0.01Lux@(F1.6, AGC ON) |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| S/N Ratio | Above 52dB |
| Day & Night | IR Cut Filter |
| Digital Noise | 3D/2D |
| Back light compensation | support |
| Wide Dynamic Range | Support, on/off, 4 class for adjustable |
| Shutter Speed | 1/10s - 1/10,000s |
| Focus Mode | Auto/Manual/ONEAF |
| Lens | Focal Length | 4.7 - 94mm, 20X |
| Zoom Speed | Approx.2.7s(Optical Wide - Tele) |
| Angle of View | 61.4 - 2.9 degree(Wide - Tele) |
| Min.Working Distance | 10mm - 1,500mm(Wide-Tele) |
| Aperture Range | F1.6 - F3.5 |
| Pan/Tilt | Pan/Tilt Range | Pan: 360° endless; Tilt: 0° - 90°(Auto Flip_ |
| Pan/Tilt Speed | Pan Speed: 0.6° - 220°/s, Tilt Speed:6° - 30°/s |
| Proportional Zoom | support |
| Number of Preset | 220 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Park Action | Pattern / Pan Scan / Tilt Scan / Random Scan / Frame Scan |
| Network | Ethernet | 10Base - T/100Base-TX, RJ45 connector |
| Max.Image Resolution | 1920 x 1080 |
| Frame Rate | 50HZ:25fps(1920x1080) ; 60HZ:30fps(1920x1080) |
| Image Compression | H.264/MJPEG |
| Same time Preview Video | Max 6 channel |
| Dual Rate | 1080P + D1 |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS,
DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE |
| User/Host Level | Up to 32 users, 3 levels: Administrator,Camera Control, Live
viewonly |
| Security Measures | User authentication(ID and PW); Host authentication(MAC address) |
| Client | Support Hikvision Ivms-4200, PCNVR |
| Net Interface | Built in RJ45, Support 10M/100M |
| Integration | Application programming | Open-ended API, support ONVIF, PSIA and CGI |
| Web Browser | IE7, IE8, IE9, Chrome 8+, Firefox 3.5+, Safari 5+ |
| General | IR Distance | 100M - 120M |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Working Temerature | - 20°C - 60°C |
| Humidity | 90% or less |
| Protection Level | TVS3000V lightning protection, surge protection and voltage
transient protectioin, weather proof IP66 |
| Package Dimension | 300 x 300 x 470 |
| Weight(approx) | 6.5kg |
| Mount Option | Wall mount, Ceiling Mount |
| Power | DC12V/4A |
Application
It can be widely used in wide range environments which required
monitoring, e.g. river, forest, highroad, railway, airport, port,
oil field, sentry, piazza, park, scenic zone, street, station,
venue, parcel surrounding, and etc.
Dimention
