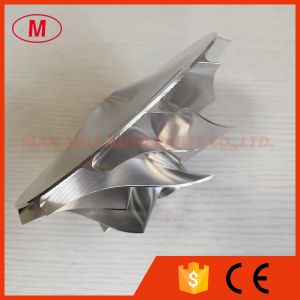

HX82 3533704 98.90/141.05mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel for 4027380/4027315/3580225

1.HX82 3533704 98.90/141.05mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel for 4027380/4027315/3580225/4027315/3545465/3594201/3594217

2.Size:

Nose diameter:24.85mm

Inducer:98.90mm

OE Exducer:141.05mm

Tapered tip exducer:148.88mm

Tip height:8.28mm

Superback:10.05mm

Overall height:65.40mm

Bore size:11.12mm

bore type:through

Trailing Angle:50 degree

Cutback:0.00

Blade height:48.18mm

Splitter height:33.45mm

Sp height angle:-9.30

Tapered tip Angle:30 degree

7+7 blades forward rotation

Fit for OE compressor housing

Application:

4027380

4027315

3580225

4027315

3545465

3594201

3594217

3.High quality and competitive price.

4.if you want more details, please send email to me.

We can produce as your requirement.

All the compressor wheels have been balanced.

The more models we also have.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
