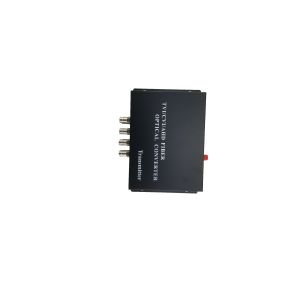

AHD CVI TVI 960P 8 Channel Video Optical Converter 8V1D Fiber Optic
Video Optical Transmitter & Receiver 8CH +RS485 Data
Description
TVI/CVI/AHD series video optical transceiver adopts the advanced
digital video and opticalfiber transmission technology, and
implement the real-time transmission &synchronization,
no-distortion and high quality 1-channel video signal on thesingle
fiber. 1-channel video optical transceiver adopts the full digital
videonon-compression transmission technology and high quality video
effect, whichcan meet the user’s requirements; the play-and-plug
design makes theinstallation more convenient and easier, and it is
unnecessary to implement thespot adjustment; its optical module and
core circuit adopts the importedcomponents that have high
stability, and all optical & electricalinterfaces conform to the
international standards, which is applied to thedifferent working
environment. This optical transceiver with video statusindication
can monitor the normal operation of system.
Thisoptical transceiver adopts the structure modularization design,
and the usercan flexibly select or customize the configuration
according to the spotdetailed conditions; the above optical
transceiver can adopt the installationmode of independent type or
framework type
Feature
- 8bit digital code and non-compression type video transmission
Support any high-resolution video signal
Automatic compatible PAL,NTSC and SECAM video system
Power supply and other parameter state indication, which can
motitor the operation condition of the system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range , and it is
unnessary in implement the adjustment of spot electrics or optics
when using
Speical ASIC design
Industry-grade of operating temperature from -20°C to 75°C , which
is applied to the different working environment
Hot-swap function
Technical Specification
| Optical |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um)
500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video |
| Channel Quantity | 1/2/4/8/16ch from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data |
| Channel Quantity | 1-16, from control center to camera |
| Data Protocol | RS485 |
| Bandwidth | 0~300kbps |
| Error Rate | 10-9 |
| Interface | Phoenix terminal |
| Electrical. Environmental. Mechanical |
| Operating Voltage | AC220V |
| Operating Temperature | -35℃~+75℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 0~95%non-condensing |
Applications
- Police and safe city monitoring system
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Military monitoring (frontier defense, national defense)
- Electronic power oil field, TV station program broadcasting
- Gymnasium (live video and audio transmission)
