360 degree Suspension Arm Type Automatic Protection System Laser
Welding machines for Mould Die Repair
(Model: PE-600D)
★Introduction of laser welding machines for mold repair
Perfect Laser specializes in the development, production, sales,
training and after-sales service of welders and has more than 20
years of experience in the welding industry. The new welding
machine introduced this time is a cantilever laser welding machine for mold repair. The laser welding machine for mold repair is designed with a cantilevered laser cavity that is different
from the original welder to accommodate welding of high strength
and high hardness materials. At the same time, the mold
two-dimensional workbench is added to ensure the continuity and
uniformity of the welded joint, which can achieve higher processing
difficulty. The introduction of German technology, the whole
machine humanized design, more suitable for the maintenance of a
variety of large and medium-sized molds.
★Features of laser welding machines for mold repair
1. It adopts ceramic capacitor cavity imported from the UK, which
has high reflectivity, corrosion resistance, high temperature
resistance, service life of 8-10 years, and xenon lamp life of 800
million times.
2. It adopts the world's most advanced high-speed liquid crystal
light valve filter automatic protection system, which eliminates
eye irritation during work.
3. It has a high-power integrated chiller to ensure the long-term
high-power stable working state of the whole machine.
4. With a cross cursor stereo microscope, the welding position can
be enlarged 10 times (optional 15 times, 20 times). The center of
the crosshair overlaps the center of the laser spot for easy
positioning.
5. Parameter adjustment adopts intelligent handle remote control,
which is easy to operate; 12 direction can be adjusted by computer
control. This type of welding machine is suitable for various mold
repair welding.
★Technical parameter of laser welding machines for mold repair
| NO. | Project | Specifications |
| 1 | input voltage | Three-phase four wire system,380V±5% |
| 2 | Maximum input power | 16KW |
| 3 | All mirror | reflectivity≥99.7% |
| 4 | Power feedback type | current feedback |
| 5 | Condenser cavity | Gold single cavity design, double lamp single rod |
| 6 | Laser wavelength | 1.064μm |
| 7 | Beam divergence angle | ≤8mrad/m |
| 8 | Peak output power | 500W |
| 9 | Laser head adjustment | 360 degree |
| 10 | Pulse frequency | 1~150Hz |
| 11 | pulse width | 0.1~20ms |
| 12 | Current regulation | 50-500A |
★Application of laser welding machines for mold repair
Applicable materials: It can repair all kinds of die steel, stainless steel, steel,
precious metal and hard materials, aluminum welding. Precision
injection molding, die casting, mold repair and accessories,
precision stamping parts welding, lost wax castings, aluminum
castings, stainless steel sand holes.
Applicable industries: widely used in chassis, automotive, tires, ships, plastic housings
for large household appliances, automotive parts, bearings,
construction machinery and other mold manufacturing and molding
industries.
Cantilever mold repair laser welding machine is suitable for
welding large, medium and small molds, aluminum welding.

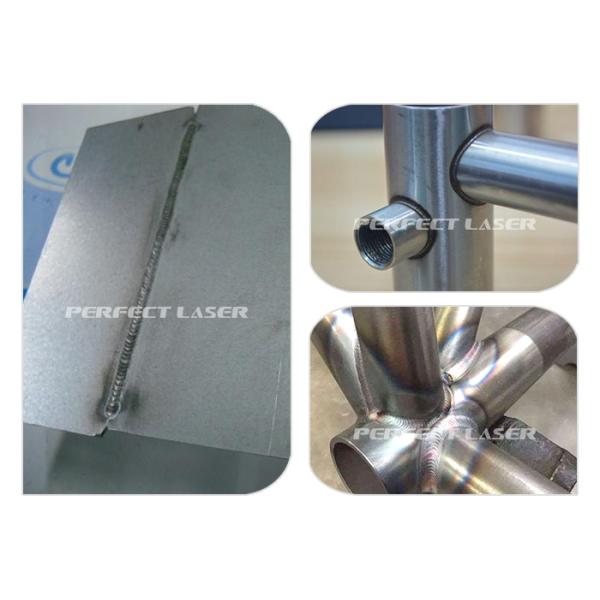

★Samples
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
