    SS304 Spiral Conveyor Belt, Wire Diameter: 1.6mm, 25cm Rod Pitch, 24Inch Wide

    Ask Lasest Price
    Brand Name : Tenglu
    Price : usd
    Payment Terms : T/T, L/C at sight
    Delivery Time : In 20days
    Certification : ISO9001:2015
    • Product Details
    • Company Profile

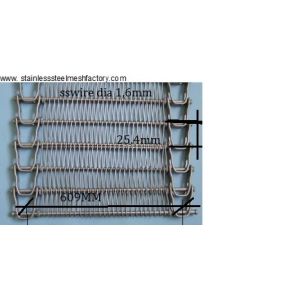

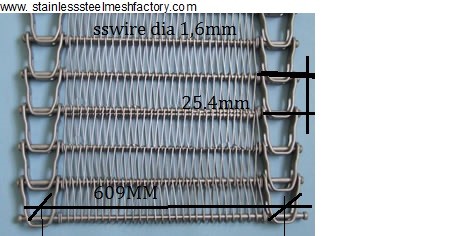

    SS304 Spiral Conveyor Belt, Wire Diameter: 1.6mm, 25cm Rod Pitch, 24Inch Wide

    Stainless Steel Spiral Conveyor Belt are used through a variety of industries from food processing to heat treatment. Wire belt patterns include: Balance, Compound, Duplex, Chain Driven, Baking Bands, etc. Spiral wire belting makes the premier material for the major conveyor applications.

    Wire conveyor belt is made of various metals which will with stand both atmospheric and chemical corrosion, or of any alloy which will resist heat treating furnace temperatures. To eliminate any danger of product contamination, stainless steel wire belts are recommended.

    Features of stainless steel chain conveyor belt mesh :

    • straight run
    • positive driving of the flat wire belt without slipping
    • large open area allows easy air flow on the tunnel freezer belt
    • long lifetime


    Industries served:

    • Food Industry - Conveying, washing, blanching, drying, frying, freezing, baking, cooling, wrapping, packing, canning, bottling etc.
    • Heat Treatment - Brazing, bluing, hardening, washing, degreasing, pickling, sintering, quenching, rinsing, tempering, drawing, enameling, etc.
    • Ceramics and Glass Industries - Annealing, decorating, sanding etc.
    • Specifications according to your requirements.


    Applications of Mesh Belt stainless steel 304, 316, 310 :

    1. conveyor belt in freezing and cooling tunnels
    2. conveyor belt in confectionery and chocolate industry
    3. cooling belt in bakeries
    4. conveyor belt in the chemical industry
    5. supporting belt in special driers
    6. conveyor plotting belt in special discharging towers at ports and airports,
    7. pasteurizing belt, cooking belt, spiral freezerbelt, pizza conveyor belt


    Image shows: used for hot air withering conveyor for tea leaves

    Types of specifications

    TypesPitchBelt widthWire diameterCross rod diameterU-shape link heightU-shaped link width
    Standard U-shape link3/4"2.2m2mm5mm11mm28mm
    Standard U-shape link1"1.7m - 2.2m2mm5mm11mm29mm
    Heavy duty U-shape link1"2.2m3mm5mm11mm36mm
    Heavy duty U-shape link1"1.7m - 2.2m3mm5mm11mm41mm
    Heavy duty with double reinforced plate1"1.7m - 2.2m3mm5mm11mm41mm


    Packing:
