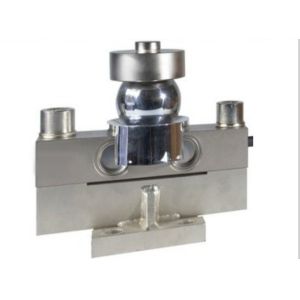

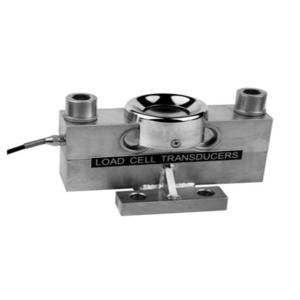

    KELI Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell

    Ask Lasest Price
    Brand Name : Keli
    Model Number : QS
    Certification : OIML
    Price : negotiation
    Supply Ability : 100pcs/m
    Delivery Time : 25days
    • Product Details
    • Company Profile

    KELI Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell


    keli QS Bridge type weighing load cell used for weighbridge truck scale


    Specifications:


    Rated Load:5/10/20/25/30/40/50tOperating Temp. Range:-30~+70℃
    Sensitivity:(2.0±0.1%) mV/VMax. Safe Over Load:150,120 (40~50t)%F.S
    Combined Error:±0.02% F.SUltimate Over Load:300,200(40~50t)%F.S
    Creep Error(30min):±0.01% F.SRecommend Excitation:10~12V DC
    Zero Balance:±1% F.SMaximum Excitation:15V DC
    Tco:±0.02% F.S/10℃Sealing Class:IP67/IP68
    Tc Span:±0.02% F.S/10℃Element Material:Alloy/Stainless Steel
    Input Resistance:750±5ΩCitation:GB/T7551-2008/ OIML R60
    Insulation Resistance:≥5000MΩCable:Length=13m
    Output Resistance:703±2Ω,703±5 Ω(L≥15m)Mode Of Connection:Red(Input+),Black(Input-),Green(Output+),White(Output-)

    Description:


    Double Ended Beam Load Cells

    1. Alloy steel

    2. Hermetically sealed ,Legal for trade verification according to OIML R60 up to 3000d

    3. Nominal load 10t-50t

    4. Dual-shear Beam

    5. Easy to install


    Applications:

    Weighing functions


    Competitive Advantage:
    1. We provide professional consultation guidance, site installation guidance and debugging guidance.

    2. All the products provide 1 year free warranty,life-long maintenance.

    3. We provide telephone technical guidance for other provinces and overseas.


    Please contact us:
    whatsapp/Tel:0086 15995095496
    skyer@skyerscale.com
    www.floorweighingscales.com
