20t 150t 300t High Strength Subsea Shackle Load Cell

    Buy cheap 20t 150t 300t High Strength Subsea Shackle Load Cell from wholesalers

    Buy cheap 20t 150t 300t High Strength Subsea Shackle Load Cell from wholesalers
    • Buy cheap 20t 150t 300t High Strength Subsea Shackle Load Cell from wholesalers
    • Buy cheap 20t 150t 300t High Strength Subsea Shackle Load Cell from wholesalers

    20t 150t 300t High Strength Subsea Shackle Load Cell

    Ask Lasest Price
    Brand Name : OEM
    Model Number : LS101
    Certification : CE
    Price : negotiation
    Supply Ability : 100pcs/m
    Delivery Time : 25days
    • Product Details
    • Company Profile

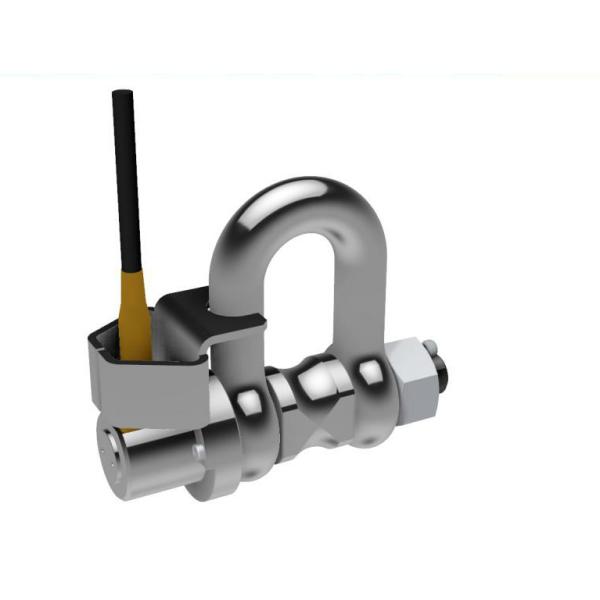

    20t 150t 300t High Strength Subsea Shackle Load Cell

    Subsea Shackle weighing Load Cell 20t 150t 300t


    Specifications:


    Capacity:3t~500t
    Safety Overload:150% of rated load
    Protection Class:IP66
    Bridge Impedance:350ohm
    Power Supply:5-10V
    Combined Error(Non-linearity+Hysteresis):1 to 2%
    Operating Temperature:-25℃ to +80℃
    Storage Temperature:-55℃ to +125℃
    Temperature Influence on zero:±0.02%K
    Temperature Influence on Sensitivity:±0.02%K
    Cap.Max. Proof Load (Ton)Normal Size AInside LengthBInside Width C

    Bolt

    Dia. D

    Unit Weight(Kg)
    34.2258543283
    68258543283
    1014329551356
    172338125604110
    253445150745115
    354750170835722
    5067652001057040
    75100752301278360
    1001348927014695100
    1201509029015495130
    150180104330155108170
    200320152559184121215
    300480172683213152364
    500800184813210178520

    Note: All dimensions are subject to change according actual use as a standard.


    Description:


    The Subsea Shackle is a High Strength Subsea rated Load Cell manufactured with a Stainless Steel Load Pin. The Subsea Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The load cell is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection..

    1. Ranges from 3 to 500 Ton

    2. Integrated 2-wire signal amplifier, 4-20mA

    3. Robust design in stainless steel

    4. Designed for Harsh Environments

    5. Designed to be compatible with existing standards

    6. Easy to install and maintain

    The electronics are molded and encapsulated inside the load cell, proven to be the best solution for EMC, potential leakage and long lifetime performance.


    Applications:


    1. Subsea Cable recovery/repair

    2. Subsea vehicle lifting

    3. Wave generator mooring/tethering

    4. Offshore wind cable installations

    5. Bollard Pull and Certification

    6. Subsea Cable Laying


    Competitive Advantage:


    1. Professional manufacturer with 10 years

    2. OEM/ODM service acceptable

    3. 100% inspection

    4. Warranty: one year
