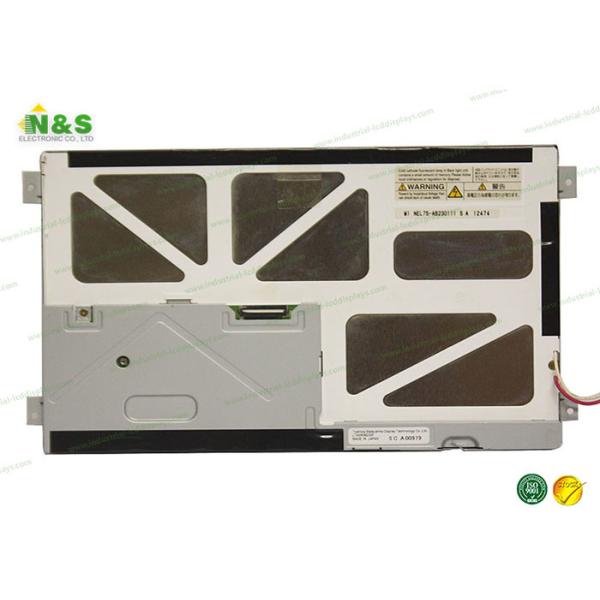

Normally White LTA090B230F TOSHIBA 9.0 inch LCM 536×328 480 for
Industrial Application panel
LTA090B230F Specification
| Panel Size : | 9.0 inch |
|---|
| Dot Resolution : | 536(RGB)×328 |
|---|
| Pixel Configuration : | RGB Vertical Stripe |
|---|
| Pixel Density : | 69 PPI |
|---|
| Aspect Ratio : | 16:10 (H:V) |
|---|
| Form Factor : | Flat Rectangle Display |
|---|
| Dot Pitch : | 0.122×0.366 mm (H×V) |
|---|
| Pixel Pitch : | 0.366×0.366 mm (H×V) |
|---|
| Weight : | 430g (Typ.) |
|---|
| Surface : | Clear |
|---|
| Active Area : | 196.18×120.05 mm (H×V) |
|---|
| Bezel Area : | 200.8×124.65 mm (H×V) |
|---|
| Outline Dimension : | 212.2×135.2 mm (H×V) |
|---|
| Outline Depth : | 16.05 mm |
|---|
| Holes & Brackets : | Face mounting holes on left and right slugs (4 pcs) |
|---|
| Touch Panel : | Without |
|---|
LTA090B230F Specification
| Lamp Position : | Edge light type |
|---|
| Lamp Type : | CCFL |
|---|
| Lamp Amount : | 1 pcs |
|---|
| Lamp Shape : | L shape |
|---|
| Lamp Voltage : | 650V (Typ.) |
|---|
| Lamp Current : | 4.0/6.5/7.0mA (Min./Typ./Max.) |
|---|
| Lamp Startup Voltage : | 1080/1400V (Min.)(Ta=+25/-10℃) |
|---|
| Interface Type : | Connector |
|---|
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 1 pcs | BLL-2PINS-HL |
|---|
| Lamp Driver Board : | No |
|---|
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen
international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG,
Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands
tft lcd moulds from 2010, you can get the most competitive price
for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels
exists.Take the lcd screen from us, you can enjoy the real panels
directly from original factory;
* Original package and Seal for batch orders, all the products are
in original package from original factory directly, and all the LCD
panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support
your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5.Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens
including size, resolution, brightness, operating temperature or
life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD104XA1F | TOSHIBA | 10.4" | 1024×768 |
| EDTCA41 | TOSHIBA | 6.5" | 320×234 |
| LTD121KC5C | TOSHIBA | 12.1" | 1024×768 |
| TFD65W46 | TOSHIBA | 6.5" | 480×234 |
| LTD131EQ2A | TOSHIBA | 13.1" | 1600×900 |
| LT043MDY5000 | TOSHIBA | 4.3" | 720×1280 |
| LTM15C458-11 | TOSHIBA | 15.0" | 1024×768 |
