LQ035Q7DB02R Sharp LCD Panel , LCM Vertical LCD Display Normally White

    Buy cheap LQ035Q7DB02R Sharp LCD Panel , LCM Vertical LCD Display Normally White from wholesalers

    Buy cheap LQ035Q7DB02R Sharp LCD Panel , LCM Vertical LCD Display Normally White from wholesalers
    • Buy cheap LQ035Q7DB02R Sharp LCD Panel , LCM Vertical LCD Display Normally White from wholesalers

    LQ035Q7DB02R Sharp LCD Panel , LCM Vertical LCD Display Normally White

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ035Q7DB02R
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    LQ035Q7DB02R Sharp LCD Panel , LCM Vertical LCD Display Normally White

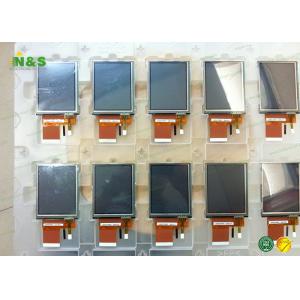

    LQ035Q7DB02R Sharp LCD Panel SHARP 3.5 inch Normally White LCM with 53.64×71.52 mm Active Area

    LQ035Q7DB02R Information

    Panel Size :3.5 inch
    Dot Resolution :240(RGB)×320 (QVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :113 PPI
    Aspect Ratio :3:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0745×0.2235 mm (H×V)
    Pixel Pitch :0.2235×0.2235 mm (H×V)
    Weight :50g (Typ.)
    Surface :Hard coating (3H)
    Active Area :53.64×71.52 mm (H×V)
    Bezel Area :57.4×75.2 mm (H×V)
    Outline Dimension :65×85 mm (H×V)
    Outline Depth :4.5±0.3 mm
    Landscape or Portrait :Portrait type
    Touch Panel :Embeded (4-wire Resistive)
    Display Mode :TN, Normally White, Transflective
    Brightness :50 cd/m² (Typ.)
    Contrast Ratio :70 : 1 (Typ.) (Transmissive)
    Contrast Ratio :8:1 (Typ.) (Reflective)
    Display Color :262K (6-bit)
    Response Time :30/50 (Typ.)(Tr/Td)
    Viewing Angle :40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.320; Wy:0.340
    Reflectance Ratio :7/11% (Min./Typ.)
    Sunlight Readable :Y



    Guarantee:
    (1) All items will be strictly tested and shipped with safe & professional package.
    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    FAQ
    Q1: What's price?
    A1: We provide reasonable price and recommend suitable batteries to our customers.
    Q2: What's delivery time?
    A2: The delivery time is normally 1-3 working days after payment.
    Q3: What's the payment?
    A3: We accept T/T, Western Union, MoneyGram, Paypal
    Q4: Can we visit your factory?
    A4: Warmly welcome. Once we have your schedule, we will arrange
    professional sales team to follow up your case.

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LM320195SHARP5.7"320×240
    LM320194SHARP5.7"320×240
    LM24013WSHARP4.6"240×64
    LM065HB1T01SHARP6.5"640×240
    LM32019P5RSHARP5.7"320×240
    LM32004SHARP5.7"320×240
    LM80C209SHARP11.3"800×600
