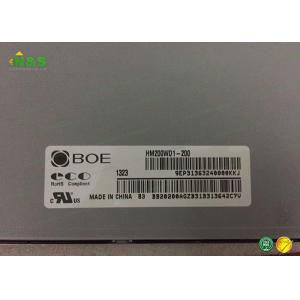

HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)

    Buy cheap HM200WD1-200      	20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model 	 	Antiglare (Haze 25%) from wholesalers

    Buy cheap HM200WD1-200      	20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model 	 	Antiglare (Haze 25%) from wholesalers
    • Buy cheap HM200WD1-200      	20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model 	 	Antiglare (Haze 25%) from wholesalers
    • Buy cheap HM200WD1-200      	20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model 	 	Antiglare (Haze 25%) from wholesalers
    • Buy cheap HM200WD1-200      	20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model 	 	Antiglare (Haze 25%) from wholesalers

    HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)

    Ask Lasest Price
    Brand Name : BOE
    Model Number : HM200WD1-200
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)

    HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)

    Products Information:

    Panel Size :20.0 inch
    Dot Resolution :1600(RGB)×900 (HD+)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :91 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.09225×0.27675 mm (H×V)
    Pixel Pitch :0.27675×0.27675 mm (H×V)
    Weight :1.70Kgs (Typ.)
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :442.8×249.075 mm (H×V)
    Bezel Area :446.8×253.1 mm (H×V)
    Outline Dimension :462.8×272 mm (H×V)
    Outline Depth :10.2 (Typ.) mm
    Holes & Brackets :Side mounting holes (4-M3)
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    FAQ

    1. Q: Where can I get the price?

    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

    2. Q: How can I get a sample to check your quality?

    A: After price confirmation, you can require for samples to check our quality.

    3. Q: What about the lead time for mass production?

    A: It depends on your order quantity and the season you place the order.

    4. Q: What are your terms of payment?

    A: We accept T/T, Western Union, MoneyGram, PayPal.


    The reasons you choose us

    1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    MV236FHB-N10BOE24.0"1920×1080
    HR270QH3-100BOE27.0"2560×1440
    BF045WVQ-401BOE4.5"480×854
    BV055HDE-N40BOE5.5"720×1280
    TV080WXB-NV0BOE8.0"800×1280
    AV080WVB-NW2BOE8.0"800×480

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    HM200WD1-200 Information


    Display Mode :TN, Normally White, Transmissive
    Brightness :200 cd/m² (Typ.)
    Contrast Ratio :600 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (6-bit + Hi-FRC)
    Response Time :1.5/3.5 (Typ.)(Tr/Td)
    Viewing Angle :45/45/25/40 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.25/1.33 (Typ./Max.)(9 points)
    Sunlight Readable :N

    HM200WD1-200 Information


    Lamp Position :Edge light type (Right side)
    Lamp Type :WLED
    Lamp Amount :13S4P
    Lamp Shape :4 strings
    Lamp Life Time :30K(Min.) (Hours)
    Lamp Voltage :37.7/41.6/46.8V (Typ./Max.)
    Lamp Current :57/60/63mA (Min./Typ./Max.)
    Lamps Power Consumption :9.05/9.98/11.23W (Min./Typ./Max.)
    Interface Type :Connector
    Interface Position :

    Backlight InterfaceBrandModelPin PitchPinsAmountConfiguration
     E&T3708K-Q06N-00L1.0 mm6 pins1 pcsBLE-6PINS-CCAACC
    Lamp Driver Board :No
