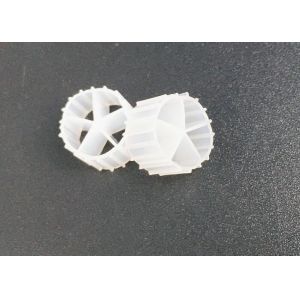

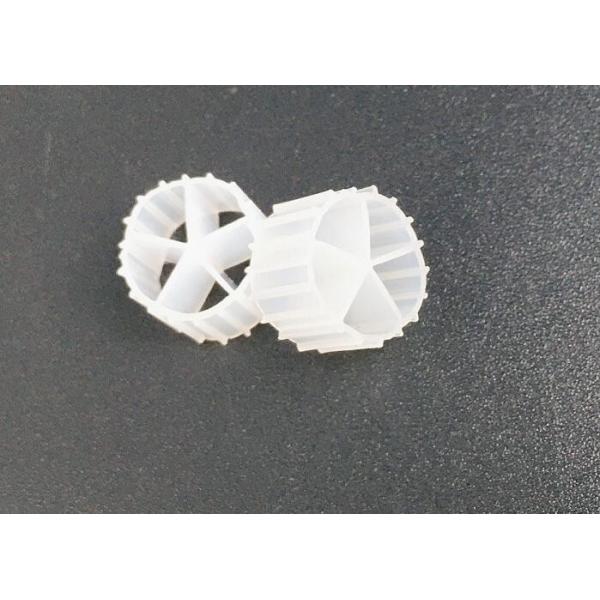

High Biological Activity White Plastic Filter Media HDPE For Fish
Pond
MBBR filter media is a novel biologically active carrier, it adopts
scientific formula, depending
on the nature of water, blending a variety of beneficial
microorganisms grow quickly attached trace elements in polymer
materials, through a special process modification, constructed,
with more than large surface area, hydrophilic, high biological
activity, biofilm fast, good effect, good impact resistance.
Main feature:
Special formula and production technology, accelerating biological
film formation ;
Larger effective surface area, obtaining more microorganism;
By bio-film decomposing technology, saving sludge return process;
High-efficiency in denitrification and dephosphorization, improving
the water quality;
Lower energy consumption, saving space and shorten technology
process.
MBBR can be used in any kind of Pond, it’s no need special pond,
and it can used the same pond as before if we change the system to
MBBR treatment system, what’s the most important thing is MBBR can
be full use of pond volume.
Accelerate the reaction rate significantly, compared with the
activated sludge process, reaction efficiency 5 ~ 10 times
Simultaneous nitrification and denitrification process,it can be a
good denitrification and phosphorus removal
It is no need bracket, just put in the MBBR filter media directly.
MBBR filter media packing free flow and cutting air bubbles in
water, increase dissolved oxygen in water, save energy consumption
Small Boss MBBR Core technology:
Special design of surface, stronger bio-film growth capacity;
Large specific surface area, high voidage, the more periphyton
biomass;
Unique design of structure and shape according to hydromechanics,
strong three-dimensional flow dynamics in the water;
Adding hydrophilic groups and other trace elements, the biofilm
formation time only 3-15 days;
Excellent impact strength, strong gas shear capacity;
Without any holder, easy to cure, save energy and space.
(Using Scope)
The sewage plant upgrade project , improve the standard and
quantity
New sewage treatment project of MBBR and biological aerated filter
process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
(Application industry: )
Municipal, Power, Pharmaceutical, Chemical, Electroplating,
Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine,
Food processing, Aquaculture, with the continuous improvement and
the deepening use of our products, Small Boss filter media will be
used more and more widely.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
