100w LED Street Light , IP65 Outdoor LED Roadway Lighting With
2700-6500K CCT
Specification:
Model | Power Consumption | Current | Product Dimension(mm) | Luminous Flux | IP Rating | Net weight |
|---|
LY-ST20030XX | 30W | 0.14A/220V | 410*200*90 | 3900 | IP65 | 2.8 |
LY-ST20040XX | 40W | 0.19A/220V | 5000 |
LY-ST20050XX | 50W | 0.24A/220V | 6100 |
LY-ST20060XX | 60W | 0.29A/220V | 6100 |
Dimension:
1.Mosel:LY-ST20050XX
2.Input Voltage:100～240V AC,50/60Hz
3.Power Factor:≥0.95
4.Power Efficiency:≥88%
5.Current:0.24A/220V
6.Luminous Efficiency:≥120lm/W
7.CRI:>80
8.Beam Angle:150*65°
9.Luminous Flux:6500lm
10.CCT:WW:2700-3200K NW:4000-4500K PW:5000-6500K
11.LED Chip:60pcs Lumileds 3030 SMD Led
12.Led Driver:Meanwell HLG-60-36A
13.Warranty:5 years
14.IP Rating:IP65
15.Net weight:3.3kg
16.Housing Material:Die Casting Aluminum
1.Absolutely unique mold,make your lighting special and fantastic.
2.Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3.Anti-glare and uniform light level to avoid any visual
discomfort.
4.high quality power supply, input voltage 100-277V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
5.Adopting 3030 led light sources and LEYOND lens technology, 8%
light efficiency higher than the same type lights in the market,
with higher light transmittance up to 98%.
6.Duct type thermal design, reduce the weight of the light and
ensure good heat dissipation, lower luminous decay, and also extend
life span of the leds. Adopting the popular CHEM modular design,
effectively reduce the following maintenance cost.
7.Low energy consumption,matching high efficiency constant-current
driver, 60% energy saving; with good resistance to over-current,
over-voltage, lightning, high temperature, which fully ensure long
life span and high stability of the products.
8.Durable lights with long life span up to 50000 hours; No need
frequent replacements of lights and regular maintenance.
9.Green environmental protection, no UV light and infrared
radiation, no mercury pollution.
10.Nice appearance and non-fouling properties, Protection class
IP66.
11.Work without strobe, fast transient response；A wide range of
working voltage.

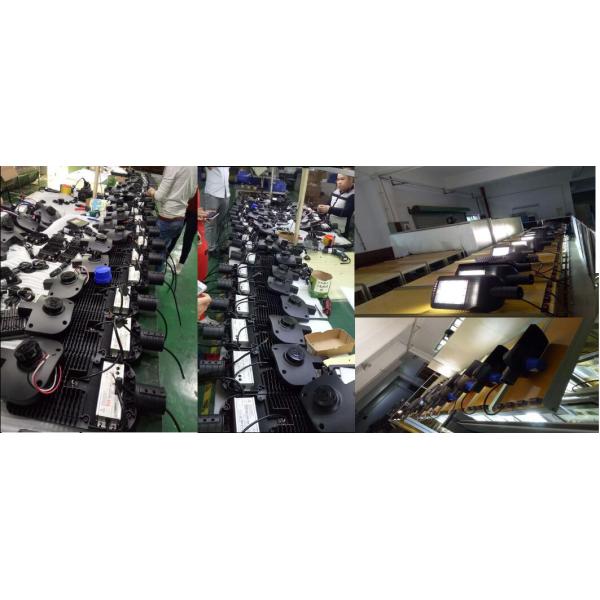

Production Line
Package:
Our Service:
Payment: T/T in advance
Items: EXW Price
Delivery Time: 5-7 days for sample, 10-15 working days for bulk
quantity.
Shipping way: DHL, FEDEX, UPS, TNT express, by sea or by air.
FAQ:
1. May I have a sample for the light please?
---Sure,mixed power is also support.
2. How many watts does this light provide?
---30w, 40w,50w, 60w
3. Which shipping way do you have?
---DHL, FEDEX, UPS and TNT are all support. By sea or by air can be
available based on your request.
4. What is your warranty?
---We are provide 3-5 years warranty which based on different
materials.
5. What is the delivery time?
---Normally, 5-7 days for sample, 15-20 days for bulk order. If on
special condition, the delivery time can be discussed.
6. Do you make OEM ?
---Yes, OEM orders are warmly welcomed.
7. Are you the manufacturer?
---Yes, we are professional manufacturer for led lighting since
2008. And have completed design-delelop-sales-service system.
