Blue Metal Pneumatic Hose Fittings , Spring Protection Slef Locking Air Hose Coupling

Blue Colour Metal Coupler Spring Protection Slef - Locking Quick Coupling

Quick coupler used widely in metallurgy,oil industrial, chemical,textile,aviation,mechanical automation, transporation, electronics, medicine equipment,teching equipment as airline connector

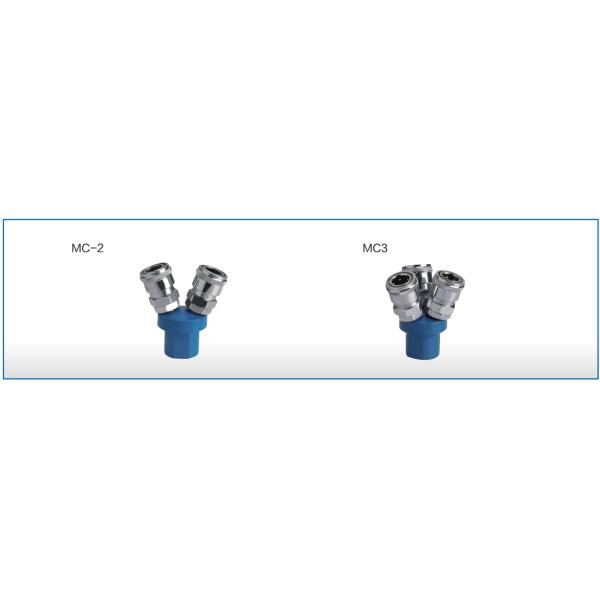

Quick coupler use especially in air tool area to connect the pipeline.Nitto type quick coupler male female thread,e.g MC-02

Quick Detail:

* Body material carbon steel nickle plated

* Working pressure0-1.0MPa

* One-hand operated,convenient and rapid connecting

* Wide tempreature range -20~100℃

* Unbaffled design poppet,stable and reliable

* Female thread socket,hose barb socket,fast compression type socket

* Female thread plug,hose barb plug,fast compression type plug

* With spring for tube protection selectable

* Tube size I.D 4mm,5mm,6.5mm,8mm

* Thread size 1/8”,1/4”,3/8”.1/2”

* Thread in BSP,BSPT,NPT for option

* Compact design,samll volume,long service life

Specifications:

1, Working Medium:Compressed air

2, Body material: Carbon steel nickle plated

3, Maximum working pressure:35bar

4, Working temperature: -20~100℃

5, Seal Material:NBR

Tube Outer DIA

Thread Type & Size

Since founded in 2000,PRIUS focuses on industry automation technology research , innovation and development.The manufacture base is Fenghua XinYi Pneumatic.We are aimed at helping customers solve their special and high standard project. We always offer high efficiency service,intelligent solution and accurate answer.We already built our reputation of professional on pneumatic.

PRIUS experienced over 15 years on pneumatic,our high quality products are wildly used on electronic,pharmaceutical,food processing,packaging,medical and many other fields.Our efficiency and professional service help to win the market in Europe,in Asia,in Aferica,in America area,in the Middle East….

In the future,PRIUS will keep moving and go through the new stages for product innovation and brand upgrades.We will follow the core concept” Focused Will, Professional Skill” and create more value for customers,Prius will never stop!
