LQ057V3DG02 5.7 inch Sharp LCD Panel Normally White LCM 640×480 400 600:1 262K WLED TTL

    Buy cheap LQ057V3DG02 	5.7 inch   Sharp LCD Panel  Normally White LCM	640×480 	400	600:1	262K	WLED	TTL from wholesalers

    Buy cheap LQ057V3DG02 	5.7 inch   Sharp LCD Panel  Normally White LCM	640×480 	400	600:1	262K	WLED	TTL from wholesalers
    • Buy cheap LQ057V3DG02 	5.7 inch   Sharp LCD Panel  Normally White LCM	640×480 	400	600:1	262K	WLED	TTL from wholesalers
    • Buy cheap LQ057V3DG02 	5.7 inch   Sharp LCD Panel  Normally White LCM	640×480 	400	600:1	262K	WLED	TTL from wholesalers

    LQ057V3DG02 5.7 inch Sharp LCD Panel Normally White LCM 640×480 400 600:1 262K WLED TTL

    Ask Lasest Price
    Brand Name : Sharp
    Model Number : LQ057V3DG02
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    LQ057V3DG02 5.7 inch Sharp LCD Panel Normally White LCM 640×480 400 600:1 262K WLED TTL

    LQ057V3DG02 5.7 inch Sharp LCD Panel Normally White LCM 640×480 400 600:1 262K WLED TTL


    LQ057V3DG02 Specification

    Panel Brand :SHARP
    Panel Model :LQ057V3DG02
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :5.7 inch
    Resolution :
    640(RGB)×480 , VGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :115.2×86.4 mm
    Outline :144×104.6×13.5 mm
    Surface :Antiglare
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :600:1 (Typ.)
    Display Colors :262K (6-bit)
    Response Time :8/21 (Typ.)(Tr/Td)
    Viewing Angle :
    80/80/80/70 (Typ.)(CR≥5) (L/R/U/D)
    Lamp Type :WLED Embedded (LED Driver)
    Signal Interface :Parallel RGB (1 ch, 6-bit) , 33 pins
    Input Voltage :3.3V (Typ.)(VCC)

    FAQ

    1. Q: Where can I get the price?

    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

    2. Q: How can I get a sample to check your quality?

    A: After price confirmation, you can require for samples to check our quality.

    3. Q: What about the lead time for mass production?

    A: It depends on your order quantity and the season you place the order.

    4. Q: What are your terms of payment?

    A: We accept T/T, Western Union, MoneyGram, PayPal.


    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.


    Panel Size :5.7 inch
    Dot Resolution :640(RGB)×480 (VGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :141 PPI
    Aspect Ratio :http://www.panelook.com/too-templates/en/images/icon/icon_question.gif,http://www.panelook.com/too-templates/en/images/icon/icon_question.gif
    4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.060×0.180 mm (H×V)
    Pixel Pitch :0.180×0.180 mm (H×V)
    Weight :
    250g (Max.)
    Surface :Antiglare
    Active Area :115.2×86.4 mm (H×V)
    Bezel Area :120.0×91.2 mm (H×V)
    Outline Dimension :144×104.6 mm (H×V)
    Outline Depth :
    12.3/13.5 (Typ./Max.) mm
    Holes & Brackets :Rear mounting holes (4 pcs)
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    LQ079L1SX06SHARP7.9"1536×2048
    LQ079L1SX04SHARP7.9"1536×2048
    LQ133M1JW08SHARP13.3"1920×1080
    LQ156D1JX02SHARP15.6"3840×2160

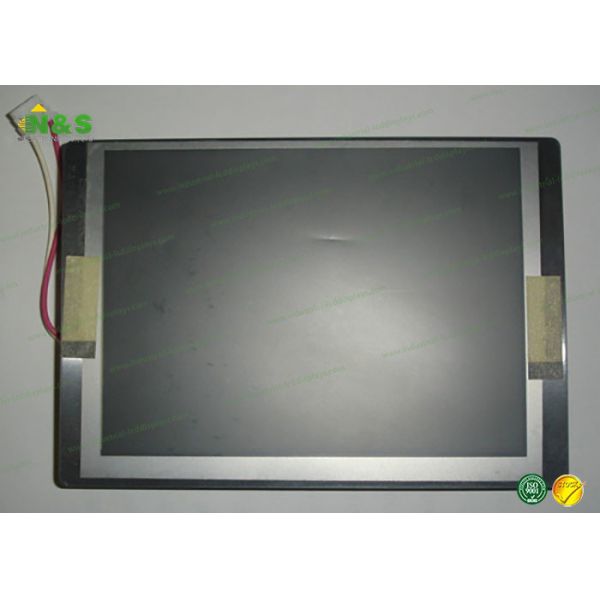

    LQ057V3DG02 Picture
