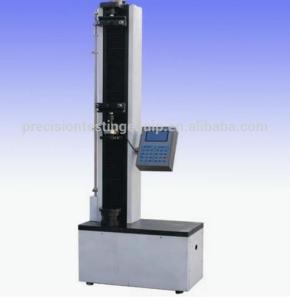

Computer Compression Tensile Testing Machine

Computer Compression Tensile Testing Machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test.

Main performance technical specifications:

Hydraulic System:
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder.Computer control signals to the servo valve,Control direction and opening of the servo valve ,to control the flow into the cylinder,achieve constant test force control.

Control system:
System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability.Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.

System has the following functions:
Closed-loop control with force;
Can achieved constant loading rate or constant stress loading rate;
Adopt computer for electronic measurement, automatic test;
Computer automatically calculates the results and print reports.picture 1 picture 2
Test reports can be to self-design and exported to Excel picture 3

Safety protection device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.




Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
