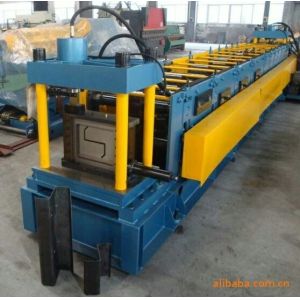

    Building Material Custom Z Purlin Forming Machine Metal Roll Former 11-16 Forming Steps

    Ask Lasest Price
    Brand Name : ZBR
    Model Number : ZBR-P-406
    Certification : CE, SGS, ISO9001
    Price : Negotiated
    Payment Terms : Negotiated
    Supply Ability : 10 sets per month
    Delivery Time : Within 45-60 Days
    • Product Details
    • Company Profile

    Building Material Custom Z Purlin Forming Machine Metal Roll Former 11-16 Forming Steps

    Building Material Custom Z Purlin Forming Machine Metal Roll Former 11-16 Forming Steps​


    Product Description


    Technological process:

    Feeding (artificial) - Sheet leveling - punching - cold roll forming section steel straightening measuring hole length hydraulic automatic cut - discharge (artificial).

    Equipment overview:

    The device is a will be galvanized steel or tropical steel after uncoiling, flat, punching, forming, cut to length on one side of the beam profile automatic production line.

    Performance characteristics:

    1 The scientific and reasonable structure of the cold roll forming process is scientific and reasonable, which is suitable for the wide range of the hardness and hardness of the galvanized steel strip or the tropical steel, and the zinc layer is not easy to be destroyed during the rolling process of the galvanized steel strip;

    2. The strip punching, and then continuous cold rolling, in accordance with the requirements of the out of the seven kinds of different diameter of holes and hole in any region of the strip, and ensure the dimensional accuracy; and high productivity (yield of single class: 1000 meters, 1200 meters);

    3 Punching, cold bending forming, hydraulic cutting without stopping;

    4 Operators need two workers.


    Technical Detail


    A. General

    Suitable MaterialHot rolled strip steel, Q235 or equivalent
    Material Thickness1.5-3.0 mm
    Material Width175-465mm
    DimensionAbout 10.0*1.2*1.75m(L*W*H) , as per the drawing
    Working SpaceAbout 20.0*2.7m(L*W)

    Length of

    the Sheet

    You can set the length according to your need.

    It is controlled by PLC

    which can ensure the accuracy of ±1mm.

    Cutting

    Automatically stop and cutting when it comes to the set

    length.


    B. Components Details

    Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.
    Main Frame400# steel. More stable and no shaking.
    Middle Plate

    16mm. We use thicker plates to ensure stability

    of our products.

    Forming Steps11-16, according to the drawing.
    Shaft MaterialΦ70 mm, high grade 45# steel.

    Treating process: tempering- finish turning,

    high rigidity, hard to deform.

    Cutting

    Blade Material

    Cr12, hardness HRC60-62.
    Treating process: heat treatment- plane abrasion- wire electrode cutting.

    C. Electric Components

    Suitable Power380V, 50 Hz, 3 phase or according to your need.
    Screen7 inch touch screen, easy to operate.
    PLCDelta DVP14ES

    Well-adapted to various conditions, such as moisture,

    electromagnetic disturbance.

    Frequency Converter

    Delta VFD-M. It has the advantage of slowing down before cutting,

    to ensure the length accuracy (±1mm,

    far better than industrial standard ±3mm).

    Length

    Measurement Device

    Omron, made in Japan.
    It features with high accuracy and stability.
