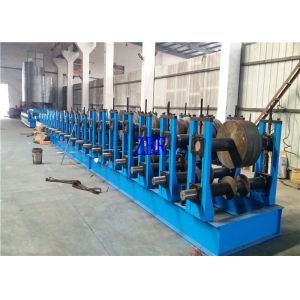

    Buy cheap R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System from wholesalers

    Buy cheap R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System from wholesalers
    • Buy cheap R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System from wholesalers
    • Buy cheap R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System from wholesalers

    R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System

    Ask Lasest Price
    Brand Name : ZBR
    Model Number : ZBR-R-1114
    Certification : ISO9001:2008
    Price : Negotiated
    Payment Terms : Negotiated
    Supply Ability : 10 Stes Per Month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System

    R Pane C Z Purlin Cold Roll Forming Equipment 1T Computer Control System​

    Product Application

    This production line can automatic continuous rolling forming ,track scale cut off and etc for the plate, ensure the continuity of production and often can up to max. Steel strip coil are on manual feeding shelf, enter into roll forming machine for forming, and then cut the knife moulds to cut the product for length.

    Manual feeding→Feeding guide→roll forming →straightening→Track to cut off→Automatic material pallet


    No.
    Name
    Specification
    Quantity
    1
    One ton of manual decoiler
    1. Material thickness:0.27-0.8mm
    1set
    2. Material width:20~350mm
    3. Feed speed: follow-up
    4. Rated load:1T;limit load:1.5T;
    5. Steel volumes of hole:508mm;OD:1350mm;
    6. Tensioning type:Manual screw tensioning
    2
    Rolling forming parts
    1. spindle:dia50mm, 40Cr,The drive shaft
    1set
    2. forming passes:14;fame:Guide pillar arch structure
    3. roll speed:0~15m/min
    4. Siemens three-phase motor,11KW four level one set
    5. drive:Turbine worm reducer
    6. protection mesh enclosure
    3
    Tracking cutting machine
    1. Cutting type:Hydraulic cutting
    1set
    2. control type:Servo trace ,Digital fixed-length
    4
    Computer control system
    1. transducer:Siemens or mitsubishi
    1set
    2. PLC: Mitsubishi and Siemens
    3. encoder:Omron(2000P)
    4. touch screen:Mitsubishi or Siemens
    5. A key remote control, automatic stop

    Main features
    1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
    2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
    3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
    4. It is very easy to install the equipment and suitable for producing in the factory.
    5. The machine has features of low noise and high efficiency.
