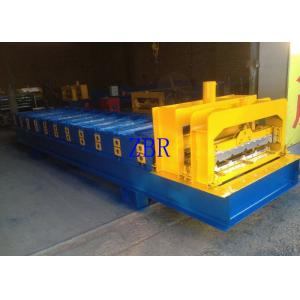

    380V 3 Phase Glazed Tile Roll Forming Machine , Corrugated Sheet Making Machine

    Ask Lasest Price
    Brand Name : ZBR
    Model Number : ZBR-G-220
    Certification : ISO9001:2008 BV,CE
    Price : Negotiated
    Payment Terms : Negotiated
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    380V 3 Phase Glazed Tile Roll Forming Machine , Corrugated Sheet Making Machine

    380V 3 Phase Glazed Tile Roll Forming Machine , Corrugated Sheet Making Machine​


    1. Components of roll forming machine:
    1.1 Decoiler
    1.2 Coil sheet guiding and adjusting equipment
    1.3 Film covered device(optional)
    1.4 Main roll forming system
    1.5 Hydraulic pump station
    1.6 PLC control system
    1.7 Cutting device
    1.8 Run-out table

    2. Work flow:
    Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel
    Dixin 995 Glazed Tile Roll Forming Machine for Roof
    3. Technical Parameters:

    No.Main parameter for
    1Suitable to processGalvanized/Aluminum/Color steel sheet
    2Width of plate1250mm
    3Thickness of plate0.3-0.8mm
    4RollersHigh grade 45# steel, with hard chrome plating
    5Forming steps16
    6Sprocket chain1.5 inch
    7Pump station power4kw
    8Shaft75mm, high grade 45# steel, heat treatment
    9Hydraulic oil pumpCB-E310
    10WeightAbout 5.0 tons
    11Productivity8-12m/min
    12Cutting headCr12 mould steel with quenched treatment
    13Control systemTAIDA brand PLC control
    14Voltage380V 3Phase 60Hz
    15Motor power4kw
    16DimensionAbout 6.8m*1.5m*1.5m
    17Hydraulic pressure10-12mpa
    18Index error of length±1mm
    19The temperature range of working line-35-50°

    Above all the parameters can be changed exactly according to customer's requirements.
    4. Advantage of roll forming machine

    No.roll forming machine
    1High grade quality
    2Reasonable price
    3High efficiency
    4Low failure rate
    5Low energy consumption
    6Free after-sale service
    7Reliable working
    8Durable
    9Wide application
    10Beautiful appearance
    11Welcomed by all over the world customers
    12Professional foreign trade team
    13Mature technician team
    14Customize special type
    5. Want a free quotation for make budget?
    Just send inquiry to me now!
    6. We are your reliable partner!
    We always do the best to make our machine perfect in every detail part.
    Any pics or videos about machine, we can provide you.
    7. Payment terms
    30% T/T as the deposit when contract signed, 70% balanced before shipping.
