    IP1-7 Comprehensive Water Spray Test Chamber with Calibration Certificate

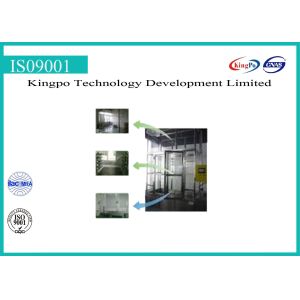

    IP1-7 Comprehensive Water Spray Test Chamber


    Function Description


    The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in a raining environment,which is of scientific design and vividly simulate various environment like torrential rain and fierce water spray.Comprehensive stepping control system and stepping technique make 360°rotation of rainfall sample rack and rotary table to simulate a fiercely raining environment from all aspects.


    Technical Parameter


    typeKP-IP1-7-1 box typeKP-IP1-7-56F
    Pendulum spray bore diameterIP1234 spray bore¢0.4MM ,IP56 spray bore:¢6.5MM ,¢12.5MM
    Distance between spray bore and sampleIP1234:200mm IP56:2500-3000mm
    Turntable diameter and speed¢300, ¢500 3r±1/Min
    Spray flowIP1234 the same as box type IP5-12.5L/Min IP6-12.5L/Min
    Spray pressure80-150KPA80-150KPA
    Test time0~999h 59min0~999h 59min
    Interior dimensionD800 X W800 X H2700MMD4000 X W5000 X H2800MM
    Exterior dimensionD1000 X W1300 X H3500mmSubject to acquirer’s decoration
    Interior materialSUS304#stainless frosting steel sheetSubject to acquirer’s decoration
    Exterior materialSUS202#stainless steel sheetSubject to acquirer’s decoration
    Water source and energypurified/distilled water 500L/day
    controllerIndependent R&D PLC touch screen controllerIndependent R&D PLC touch screen controller
    Spray systemOne IP5 spray nozzle,oneIP6 spray nozzle,2000 IP1234 spray nozzles
    Spray angleperpendicular to sample
    Power and voltage3KW 380V 3Phase
