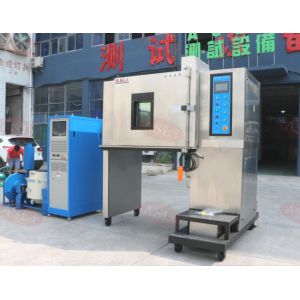

    Vibration Testing Machine Combined Temperature Chamber With Vibration Shaker Table

    Ask Lasest Price
    Brand Name : ASLi
    Model Number : THV-500(A~F)
    Certification : CE ,ISO ,SGS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 35~60 workdays
    • Product Details
    • Company Profile

    Vibration Testing Machine Combined Temperature Chamber With Vibration Shaker Table


    Vibration testing machine combined temperature chamber withvibration shaker table


    Feature of electrodynamic high frequency vibration test table:


    High Quality Temperature Humidity and Vibration Comprehensive Test Chamber to meet with respective corresponding environmental test requirements of temperature, humidity and vibration; extensively applied in aviation and aerospace, shipping, electronics ,automobile car, telecommunications, industry.

    Vibration Comprehensive Test Chamber Video for Auto parts:


    ModelTHV-408(A~F)THV-1000(A~F)THV-1500(A~F)
    Internal Dimension WxHxD(mm)600x850x8001000x1000x10001500x1500x1500
    External dimension WxHxD (mm)850x1950x21001300x2200x24001800x2400x3000
    Temperature RangeLow temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC)
    High temperature:100ºC(150ºC)
    Humidity Range20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
    Indication Resolution / Distribution uniformity of temperature and humidity0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
    Control Accuracy of temperature and humidity±0.5ºC; ±2.5% R.H.
    Temperature Rising / Falling VelocityTemperature rising approx. 0.1~3.0ºC/min ;
    temperature falling approx. 0.1~1.5ºC/min;
    (Falling velocity Min.1.5ºC/min is optional)
    Internal and External MaterialMaterial of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
    Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
    Cooling SystemWind cooling or water cooling; single segment compressor for -40ºC, double segment compressor for -70ºC
    Protection DevicesFuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
    Optional AccessoriesInner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier
    Vibration Test EquipmentChoose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference
    PowerAC380V 3∮ 5 Lines, 50/60HZ




    Short introduction about ASLi factory:


    We are a long history High Quality Temperature Humidity and Vibration Comprehensive Test Chamber manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. High Quality Temperature Humidity and Vibration Comprehensive Test Chamber is our star products , and we had obtained the CE certification for this machine .



    Certificate of these the machine:


    China official 3rd party calibration report
    CE certiification

    For the package:


    1. PP film first
    2. Vacuum package
    3. PP film again
    4. 10mm thickness PU foam to avoid collision
    5. stronged plywood case
    6. Standard ASLI CASE MARK



    If you have any question about Vibration testing machine combined temperature chamber withvibration shaker table , please contact with us,thank you .
