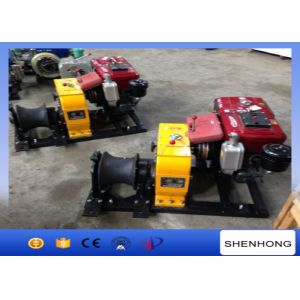

Wire Rope Pulling Diesel Cable Winch 10HP Rated Load Transmission
Line Erection
Winch Introduction
A winch is a mechanical device that is used to pull in (wind up) or
let out (wind out) or otherwise adjust the "tension" of a rope or
wire rope (also called "cable" or "wire cable"). In its simplest
form it consists of a spool and attached crank. In larger forms,
winches stand at the heart of machines as diverse as tow trucks,
steam shovels and elevators. The spool can also be called the winch
drum. More elaborate designs have gear assemblies and can be
powered by electric, hydraulic, pneumatic or internal combustion
drives. Some may include a solenoid brake and/or a mechanical brake
or ratchet and pawl device that prevents it from unwinding unless
the pawl is retracted.
Application
1. It is used for tower erection,pole setting,stringing wire in
electrical power line construction.
2. Winch can be modified as per requirement, such as changing curve
capstan into straight even
3. cylindrical shape and coming with steel rope.
Features
Small size & compact structure. The machine is now supported by gasoline engine, diesel engine,
electric or imported gasoline engine.Light weight. For example, the weight of 5 ton gasoline engine powered winch is
88 kgs. Equipped with diesel engine or motor, the winch is 160 kg.
Equipped with imported gasoline engine, the winch is only 82 kg,
which is very convenient transported. They are especially suitable
for line construction in water area and mountain. String machine
equipped with a small capstan, can also be used for a vertical rod,
wire. One machine with two function in the wildfield helps to
reduce crop losses.High efficiency. It reduces the labor intensity, improves working efficiency with
less operators and convenient field command.Safe and reliable. The machine has the interlocking brake device, accurate
positioning, excellent braking performance , flexible usage, safety
and trust.Widely used. According to customers’ response and field investigation, this
machine has wide usage, such as rod up, a vertical rod, the pull
rod, line release, line reel, the bridge plate traction, lifting
and other purposes.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM8C | Water cooled diesle engine 10HP | Slow | 4 | 8 | 200 |
| Fast | 8 | 5 |
| Reverse | 5.5 | - |
Load Test
Please tell us the following information on your enquiry:
1. Power engine?
2. Pulling Speed(m/min)?
3. Pulling capacity?
4. Quantity?
We'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in
our products.
