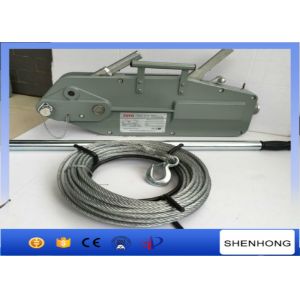

Robust Tirfor Hoist 5.4 Ton Tirfor Winch Manual With 20 Meter Steel
Wire Rope
Introduction
For lifting, pulling and positioning heavy loads. The models in the
TIRFOR TU range are unrivalled in terms of durability and
sturdiness.
They can be used to lift, pull and position loads over great
distances depending on the wire rope length. They are suitable for
use in numerous configurations and are the ideal solution for use
in professional applications; they are operated by a simple lever
Option: the load capacity of the Tirfor system can be increased by
using sheave blocks.
Portable hoist to lift and pull loads, for utilisation in numerous
configurations with long cable lengths
Quick information
1. Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2. All hoists are supplied complete with 20 meter wire rope and an
extendable operating lever.
3. Wire rope is tapered one end and fitted with a hook and safety
catch at the other end.
4. The hoist has low maintenance requirements and is easy service.
5. Overload protection ensures high personal safety when in
operation.
6. Specially built-in shear pins can be replaced without removing
the load.
Feature
1. Low weight—quick installation
2. No limitation in terms of cable length
3. Manageable, light-weight, robust, powerful
4. Increase load capacity with deflection sheaves
5. Overload protection
6. Precise load placement within millimetres
Specifications
| Item No | VIT-800 | VIT-1600 | VIT-3200 | VIT-5400 |
| Lifting Capacity (kg) | 800 | 1600 | 3200 | 5400 |
| Pulling Capacity (kg) | 1300 | 2800 | 6000 | 10125 |
| Tested to (kg) | 1500 | 3000 | 6000 | 10125 |
| Steel wire rope dia. (mm) | IWRC 8.3 | IWRC 11 | IWRC 16 | IWRC 20 |
| Wire rope safety factory load caoacity (mm) | 5×WLL | 5×WLL | 5×WLL | 5×WLL |
| Breaking strength of wire Rpoe (kg) | 5430 | 9680 | 17200 | 27000 |
| Net weight (without wire Rope) (kg) | 6.4 | 12 | 23 | 28 |
FAQ
1. Can your product change the color?
Yes, we can change the color of products as your required.
2. What's the information should I provide when inquiry?
A. The time of delivery
B. The maximum lifting weight
C. The maximum lift height
3. Whether your prices are reasonable?
It is the fact that each company has its profit.we pay more
attention on quality to keep our price value for quality!
4. How about your quality control before shipment?
All of our products will be strictly checked and tested by the QC
department before packing.So we guarantee the quality of our
products are excellent. We can offer our serial NO., then you can
know the detailed products.
