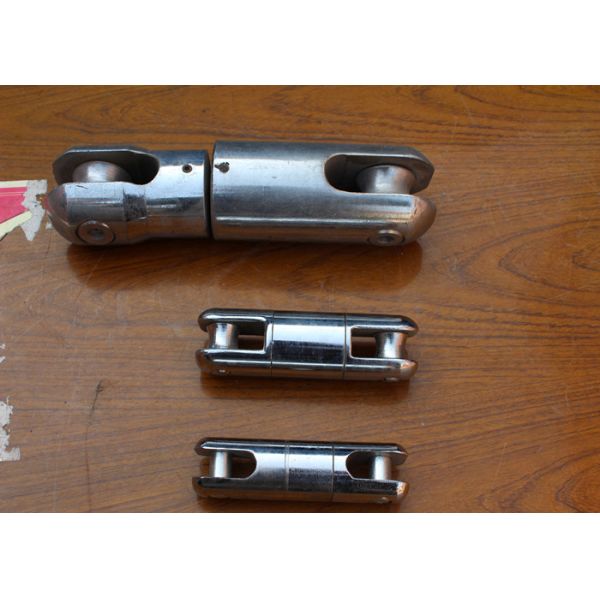

High Strength Connecting Cable Pulling Tools Steel Swivel Joint For
Underground Cable Installation
Application
In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to
release wire rope twisting.
Whether you have an underground pulling or overhead hauling
application, pulling swivels can reduce the risk of tangles or
kinks in the line. All sizes feature high strength stainless steel
construction with built-in oil seals.
Tensile load is managed by a thrust bearing, bending load is
handled by a radial bearing, and they combine for industry leading
high safe working loads in a compact design. Select a swivel with a
maximum rated capacity that meets or exceeds maximum pulling force,
use 3:1 Safe Working Load for underground pulling and 5:1 Safe
Working Load for overhead hauling applications.
Features
1. attractive appearance
2. durable
3. light weight
4. It is forged from high strength stainless steel.
Technical Data
| Model Type | Rated Load(KN) | Outter Diameter(mm) | Groove Width(mm) | Weight(kg) |
| XBL-1 | 30 | Φ26 | 12 | 0.4 |
| XBL-2 | 35 | Φ34 | 14 | 0.5 |
| XBL-3 | 55 | Φ40 | 16 | 1.9 |
| XBL-4 | 80 | Φ52 | 18 | 2.2 |
| XBL-5 | 120 | Φ60 | 24 | 3 |
| XBL-6 | 160 | Φ65 | 28 | 3.7 |
Quality Control
We have the complete production equipments and professional
production team to manage the whole process from production to
packing shipment.All products will 100% test before delivery to
ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Suzhou Shenhong Import&Export Company is trading company and
manufacturer for Power Transmission Line Stringing Equipments &
Construction Tools in China. Suzhou Shenhong is an experienced
manufacture and trader of Power & Telecom Line Stringing Equipments
and tools, and have engaged in this line for more than 10 years.
The products comprise of hydraulic pullers, hydraulic tensioners,
Motorised winches, stringing blocks,anti-twisting braided steel
wire ropes, tackle blocks, come along clamps, cable pulling grips,
swivels, connectors, hoists, gin poles, conductor cutters,
pump-presses, insulator lifter, cable rollers etc.
