0.02mm-10mm Nichrome Alloy NiCr8020 Electric Heating Wire for
Toaster Ovens
Brife Introduction of Nichrome Alloy NiCr8020 Wire:
Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr
80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme
V,Nikrothal 80 etc. It has high resistivity, good anti-oxidation
properties, high temperature strength, very good form stability and
weld ability. It is widely used in electrical heating element
material, resistor, industrial furnaces, etc.
Chemical Composition(%):
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max |
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Mechanical Properties:
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Common size of the Wire:
(1)Bright Wire: 0.02mm-3mm
(2)Pickling Wire: 1.8mm-10mm
(3)Oxidized Wire: 0.6mm-10mm
(4)Flat Wire: (T): 0.05mm-1.0mm, (W): 0.5mm-5.0mm
Package of the Wire:
Wire twined on the spool, film covered on the wire

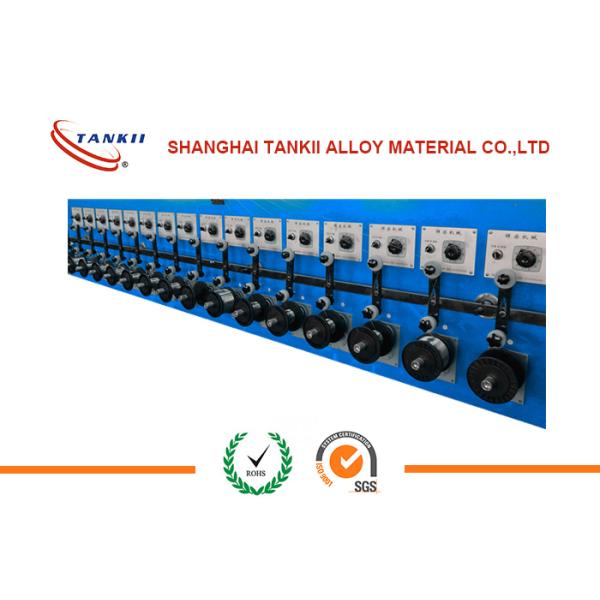

Our Machine:
Shipping by sea, by aire, by express:
| Destination | By sea | By air | By express |
| Japan,Korea,Taiwan | 2-3 days | | |
| Southeast Asia | 7-9 days | 2-3 days | |
| The Middle East | 20-25 days | 3-5 days | 3-5 days |
| India-Pakistan | 15-22 days | 3-5 days | 3-5 days |
| Mediterranean | 28-30 days | 3-5 days | 3-5 days |
| Europe | 28-35 days | 3-5 days | 3-5 days |
| Africa | 40-45 days | about 7 days | about 7 days |
| Australia | 18-32 days | 3-5 days | 3-5 days |
| West of America | 12-15 days | 3-5 days | 3-5 days |
| East of America | 25-35 days | 3-5 days | 3-5 days |
| Middle and South America | 30-55 days | about 7 days | about 7 days |
Series of Nichrome Alloy Wire:
Ni80Cr20, Ni70Cr30, Ni60Cr40, Ni60Cr23, Ni60Cr15, Ni35Cr20,
Packing & Shipping:
Wire packing:
(1)In spool--when the diameter≤1.2mm
(2)In coil--when the diameter>1.2mm
(3)All the wire packd into cartons→cartons packed into plywood
pallet OR wooden case
Delivery-When the pre-payment is confirmed:
(1)The requested products are in stock,we will send them out within
3 day
(2)The raw material is in stock,we will send out the products
within 10 days.
(3)When we need to re-melt the material,it will take 20-25 days to
send the products
Our Services
(1)Offer OEM service;
(2)Test report will be sent accompanying the products;
(3)Adding metal elements according to the standard of different
countries as per the user's requirements.
FAQ
Q1:What is the MOQ?
A1:Any quantity you need when the sizes are in stock.
Wire diameter<0.1mm,it is 1kgs
Wire diameter 0.1~0.3mm,it is 2~3kgs
Wire diameter 0.3~0.7mm,it is 5kgs
Wire diameter 0.7-1.2mm,it is 10kgs
Wire diameter >1.2mm,it is 20-25kgs
For strip,smaller size,it is 10-20kgs
Larger size,it is 50-100kgs
Q2:Can you offer free samples?
A2:Yes,when the same sizes or the close sizes are in stock.But the
customers must bear the freight of the samples.
Q3:What's the payment terms?
A3:We accept T/T,L/C,Paypal etc.It can be negotiated when the
amount is different.
Q4:What is the standard of the material?
A4:Nichrome alloy is supplied according to Chinese standard GB/T
1234-2012.But We can add metal elements according to the standard
of different countries as per the user's requirements.
Q5:Are you trading company or manufacturer?
A5:We are factory.And we welcome your visiting.
