    XFP To UTP Fiber Ethernet Media Converter , Multimode Fiber To Ethernet Converter

    Ask Lasest Price
    Brand Name : E-LINK
    Model Number : LNK-10G-MC-XFP
    Certification : CE/FCC/Rohs
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Price : Negotiation
    • Product Details
    • Company Profile

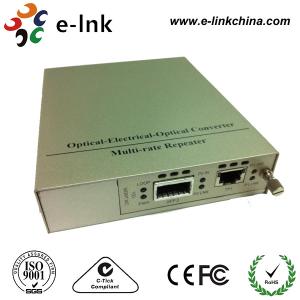

    XFP To UTP Fiber Ethernet Media Converter , Multimode Fiber To Ethernet Converter

    10G XFP to UTP multi mode 10g media converter

    Product Description
    Model: LNK-10G-MC-XFP

    Overview


    The LNK-10G-MC Series is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port or XFP port. The open SFP+ or XFP port supports a wide variety of E-link 10GE SFP+ or XFP fiber modules, as well as third party MSA compatible SFP+ or XFP modules.

    The LNK-10G-MC Series is a copper to fiber 10Gbps Ethernet media converter based on IEEE802.3an and IEEE802.3ae. With SNMP and Web-based management in the LNK600-R16, the Network administrator can monitor, configure and control the activity of each card in the chassis. This converter uses Cat.6a/Cat 7 twisted pair cable as copper transmission media with RJ-45 and 10G optical solution with SFP+ or XFP. The data stream can be converted bi-directionally from 10GBase-T to 10GBase-R and vice versa. With full duplex wire speed forwarding capability between these two media, The LNK-10G-MC brings you the best and simplest solution for the 10G Ethernet conversion between copper wire and fiber.


    Features

    • Support Jumbo Frame
    • Transparent Transport and very low delay
    • Support ITUT prescribed DWDM/CWDM wavelength
    • Support DMI function for XFP fiber module
    • Support Loopback test function
    • Economic In-band Management function
    • Powerful Network Management function(Web,SNMP,Console)
    • Support hot plugging
    • Support 2U Rack (16 channel) and standalone use
    • Full State Led display
    • Easy installation
    • UTP cable length detection(only RJ45 interface)
    • Provide reliable long-distance connection
    • Fast connection with multi-function
    • Small portable size case
    • Plug and play

    Application

    Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 160km


    Technical Indexes

    Module CardSFP+ Module CardXFP Module Card
    Type AType B
    InterfacePort ASFP+XFP
    Port BRJ45RJ45
    Transmission Speed10G10G
    DataTechnical Indexes
    ProtocolsIEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)Access Type10G LAN
    Transmission DistanceXFP module: Up to 80Km
    10Gbase-T: 100meters Cat .6a cable
    Maximum Packet Forwarding Rate14,880,950/S
    Network management
    information
    • Card type information
    • SFP+ or XFP fiber module detection
    • SFP+ or XFP fiber module DMI function (Temperature, Voltage, Optical power)
    • Link status detector
    • Enable/Disabled Loopback test function
    • Enable/Disable PRBS Generator and checker function
    • Rate select (10Gbase-Lan or Wan)
    • Remote card's status monitor (only in pairs)
    Power requirementRack-mountable : AC 85 ~ 220V OR DC -48V
    Standalone: AC 220V OR DC -48V

    Power consumption: ≤9W
    Work EnvironmentOperating Temp: 0~ 50 ℃
    Storage Temp: -10~ 70 ℃
    Humidity: 5%~90% (non-condensing)
    DimensionCard :11.5mm(W)×78mm(D)
    Standalone :156mm(W)×128mm(D)×32mm(H)
