Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA

    Buy cheap Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA from wholesalers

    Buy cheap Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA from wholesalers
    • Buy cheap Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA from wholesalers
    • Buy cheap Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA from wholesalers
    • Buy cheap Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA from wholesalers

    Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3096
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 PCS/ week
    Delivery Time : within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA


    Product name: Arduino Barcode Scanner Module QR Code Reader with Small Size for Medical PDA
    Item number: LV3096
    Interface: TTL232
    Product size: 21.17(W)*14.6(D)*11.52(H)mm
    Symbols: 1D&2D [ PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code ]
    Operating temperature: -20℃±60℃
    Features: compact size, seamless upgrade for Symbol SE955, low power consumption.
    Application: Mobile data collector, Bluetooth barcode scanner, tablet and other hand held devices etc.


    Technical Specifications of LV3096 2D Barcode Scanner Module

    Product nameArduino Barcode Scanner Module
    Item numberLV3096
    ProcessorIOTC 2D decoder chip 48MHz
    InterfaceTTL-232
    Image Sensor752× 480 CMOS
    Symbologies2D: PDF417, Data Matrix, QR Code
    1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
    ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
    Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
    Reading Precision≥ 5mil
    Depth of Field*

    EAN13 (13mil) 55mm - 185mm;
    Code 39 (5mil) 55mm - 100mm;
    PDF 417 (6.67mil) 40mm - 130mm;
    Data Matrix (10mil) 40mm - 135mm;
    QR Code (15mil) 40mm - 160mm

    Symbol Contrast≥ 30% reflectance difference
    Scan Angle**Roll: 360°, Pitch: ±55°, Skew: ±55°
    Field of ViewHorizontal 36°; Vertical 23°
    Ambient Light0 ~ 100,000 LUX (natural light)
    Rated Power Consumption0.76W
    Operating Voltage3.3±10% VDC
    Dimensions21.17(W)×14.6(D)×11.52(H)mm
    Current @ 3.3 VDC

    Operating Current 230 mA;
    Standby Current 4mA (USB communication not supported); 7mA (USB communication supported);
    Sleep Current <5 uA

    Weight5.0g
    Operating Temperature-20 ℃ to + 60 ℃
    Storage Temperature-40 ℃ to + 80 ℃
    Humidity5% - 95% ( non-condensing )
    CertificationFCC Part15 Class B, CE EMC Class B

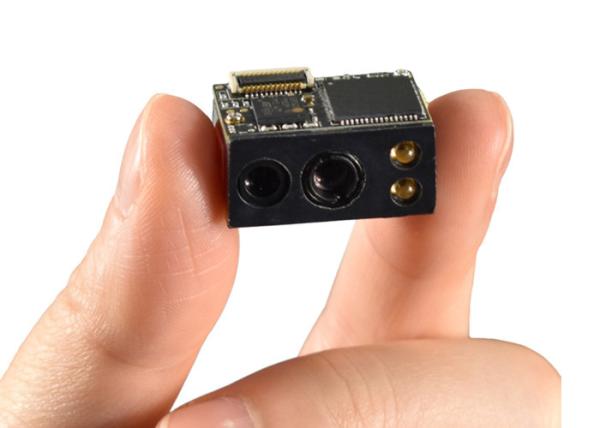

    Picture of LV3096 2D Barcode Scanner Module
    1d 2d barcode scanner module
    qr barcode scanner module



    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
