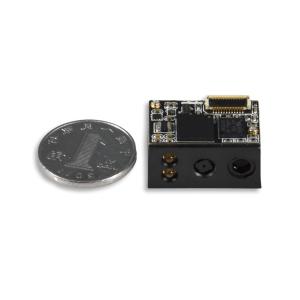

LV3096 PDF416 Arduino Barcode Scanner Module 752×480 CMOS Image
Sensor
LV3096 2D BARCODE SCANNER MODULE FOR HAND-HELD PDA PAD
| Performance |
| Image Sensor | 752×480 CMOS |
| Processor | IOTC 2D decoder chip 48MHz |
| Illumination | Red LED 625±10 nm |
| Symbologies | 2D | PDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code |
| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1
Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of
5, Plessey, MSI-Plessey, etc. |
| Reading Precision | ≥ 5mil |
| Depth of Field* | EAN13 (13mil) | 55mm - 185mm |
| Code 39 (5mil) | 55mm - 100mm |
| PDF 417 (6.67mil) | 40mm - 130mm |
| Data Matrix (10mil) | 40mm - 135mm |
| QR Code (15mil) | 40mm - 160mm |
| Symbol Contrast | ≥ 30% reflectance difference |
| Scan Angle** | Roll: 360°, Pitch: ±55°, Skew: ±55° |
| Field of View | Horizontal 36°; Vertical 23° |
| Mechanical/Electrical |
| Interface | TTL-232, USB (optional) |
| Rated Power Consumption | 0.76 W |
| Operating Voltage | 3.3±10% VDC |
| Current @ 3.3 VDC | Operating Current | 230 mA |
| Standby Current | 4mA (USB communication not supported); 7mA (USB communication
supported) |
| Sleep Current | <5 uA |
| Dimensions | 21.17(W)×14.6(D)×11.52(H)mm |
| Weight | 5.0g |
| Environmental |
| Operating Temperature | -20℃~ +60℃ |
| Storage Temperature | -40℃~ +80℃ |
| Humidity | 5% ~ 95% (non-condensing) |
| Ambient Light | 0 ~ 100000 lux (natural light) |
| Certifications |
| FCC Part15 Class B, CE EMC Class B |
| Accessories |
| NLS-EVK3000 | Software development board, equipped with a trigger button, beeper
and RS-232 & USB interfaces. |
| Cable | RS-232 Cable | Used to connect the EVK3000 to a host device; equipped with a power
connector. |
| USB Cable | Used to connect the EVK3000 to a host device. |
| Power Adaptor | Used to provide power for the EVK3000. |
| Output: DC5V, 2A; Input: AC100~240V, 50~60Hz |
| * Test conditions: T=23℃, Illumination=300 LUX |
| ** Test conditions: |
| Code 39, 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8; Barcode
Height=11mm; Scan Distance=120mm, T=23℃, Illumination=300 LUX |
1. The LV3096 scan engine, armed with the patented UIMG , a
computerized image recognition system, brings about a new era of 2D
barcode scan engines.
2. The LV3096’s 2D barcode decoder chip ingeniously blends UIMG
technology and advanced chip design & manufacturing, which
significantly simplifies application design and delivers superior
performance and solid reliability with low power consumption.
3. The LV3096 supports all mainstream 1D as well as PDF417, QR Code
(M1/M2/Micro), Data Matrix and GS1-DataBarTM(RSS) (Limited/
Stacked/ Expanded versions).
4. This compact engine weighs only 5 grams and fits easily into
even the most space-constrained equipments such as data collectors,
meter readers, ticket validators and PDAs.
5. 2D Barcode Decoder Chip: The engine armed with the
state-of-the-art 2D barcode decoder chip invented by Newland
demonstrates unprecedented reading performance.
6. Two-In-One Design: Seamless integration of CMOS image sensor and
decoder board makes the engine small, lightweight and easy for
integration.
7. High Performance & Ultra-Low Power Consumption: The engine can
read 1D and 2D barcodes with a power consumption only one third
that of a traditional engine.
8. All-Round Scanning Capability: It can read barcodes on virtually
any medium - paper, plastic cards, mobile phones and LCD displays.
