    Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray

    Ask Lasest Price
    Brand Name : NANYA
    Model Number : ZC026
    Certification : CE/TUV/SGS/ISO9001
    Price : negotiation
    Payment Terms : T/T, L/C, Cash or western Union
    Supply Ability : 50 sets per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray

    Semi Automatic Hot Pressing Machinery for Paper Egg Box / Egg Tray with 5 Tons


    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Hot Pressing Machinery
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Voltage: 220V - 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas

    Specifications:


    Machine ModelZC026
    Machine NameHot Pressing Machinery
    AutomationSemi Automatic
    Mould Plate Size650*450mm
    Working Pressure5tons
    Gas-liquid Pressure Cylinder125*400mm
    Electricity Heating7.6kw
    Working Temperature160~190℃
    Working Cycle6~10s
    Compressed Air Required0.5~0.6Mpa, 0.6m3/min
    Physical Dimension1150×900×2800mm
    Weight800kg
    Other special specification can be customized according to clients’ requirement.

    Descriptions:

    • Hot-press machine uses high temperature (160~190℃) and high press (5tons) to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat;
    • The working temperature is 160~190℃, but it can be adjustable(after setting the temperature, the constant temperature will be automatically regulated);
    • With infrared security devices;
    • With security device of prevent top mould fall;
    • With function of top mould and bottom mould blowing

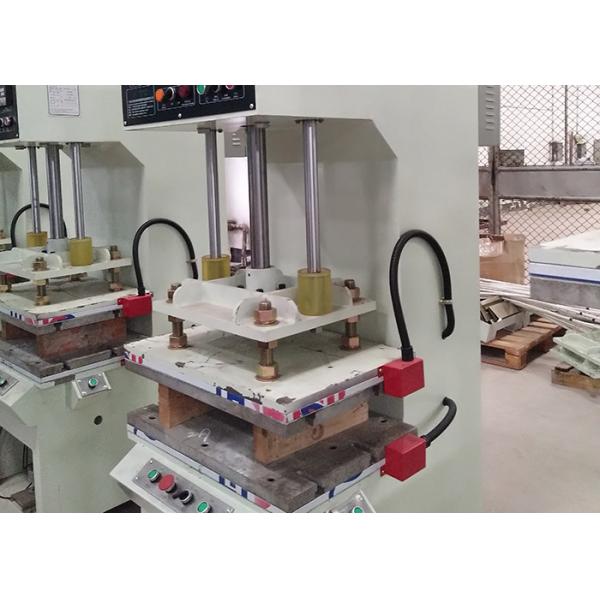

    Machine Glance:



    YOUTUBE Link:


    https://www.youtube.com/watch?v=llfE-H9eEtY


    Applications:


    Egg tray

    20,30,40packed egg tray… quail egg tray

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…


    Competitive Advantages:

    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
    • The standing director of Chinese packaging association

    Business Terms


    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    25 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
