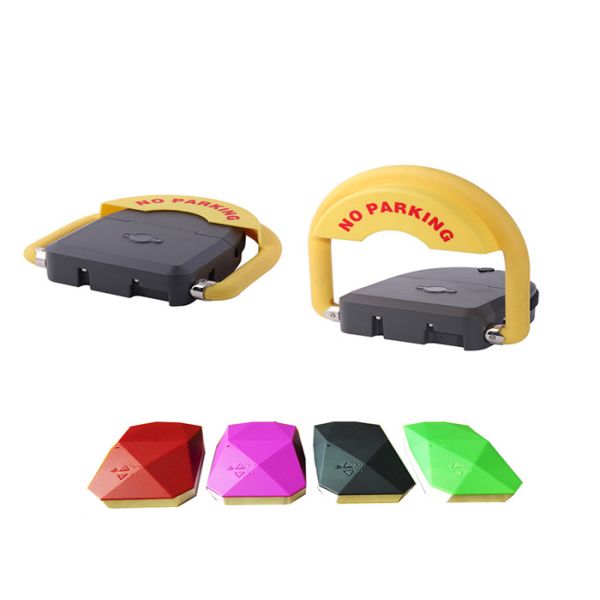

Lithium Battery Powerd Car Parking Lock Wireless Communication
Technolog
Leading technology innovation for auto sensing parking lock
1. Advanced wireless communication technology, unsure transmission
stability and good
anti-interference ability, communication distance controllable.
2. Automatic sensing mode, the user experience is good.
automatically unlock when the car come
close and automatically lock when the car left.
3. The sensor shell adopts the diamond cutting process, inside the
car is a good decoration.
4. Can switch from manual mode and auto mode, provide the user with
different experience.
5. Three kinds of indicators, signal indicator, low power
indicator, charging indicator, allowing
users to always grasp the working state of the sensor.
6. Lithium battery power supply, stable performance, low
attenuation, no memory effect, long
service life.
7. Standard Micro USB charging interface, car charge or indoor
charge is no problem.
Sensor specifications:
| Rated voltage | DC3.7V |
| Battery type | lithium battery |
| Sensor dimension | 115 X 70 X26.5 mm |
| Charging time | About 3 hours |
| Charging interface | Micro USB |
| Detection distance | 10—50m |
| Continuous working time after charging | About 15 days (auto induction mode)
About three months (manual mode) |
Sensor operation instructions
Boot instructions
●Normal boot indication: red light of the parking lock flashing
about one second.
●Anti interference channel scan indication: green light of parking
lock on the interval of 1-2
seconds flashing, represented in the scan channel state. if the
green light always on and the the
buzzer sounds, means channel scanning is completed, enter the
normal standby state, the max.
scanning time is about 60 seconds.
Intelligent sensor/remote control operation instructions
(All of the following operations must be within the sensing range)
●Manual / auto mode
●Manual / auto mode distinction: light (green) about 3-4 seconds
flashing once, means automatic
mode; light do not flash means manual mode.
●Manual / auto mode switching method: hold down the button until
the green light flashes 1
second, then release the button.
