    Double Convoluted Air Rubber Bellows Spring For HINO 49711-1010 / 49711 1010

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 49711-1010
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Double Convoluted Air Rubber Bellows Spring For HINO 49711-1010 / 49711 1010

    Double convoluted Air Rubber Bellows Spring for HINO 49711-1010 / 49711 1010

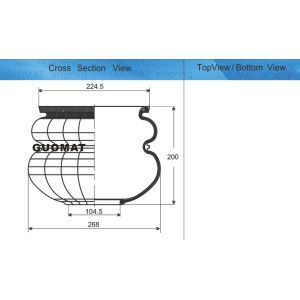

    Rubber Bellows


    Rubber Bellows Design Diameter : 268 mm

    Rubber Bellows Natural Height: 200 mm

    Top Opening Mouth Diameter : 224.5 mm

    Bottom Opening Mouth Diameter : 104.5 mm

    HINO : 49711-1010

    Double convoluted air spring

    Without steel cover plate.


    OEM NO.:


    HINO: 49711-1010

    HINO: 49711 1010

    HINO: 497111010​


    ISUZU: 1-52111001-1

    ISUZU: 1 52111001 1

    ISUZU: 1521110011


    CROSS NO.
    PHOENIX: 1 AO 17

    PHOENIX: 1AO 17

    PHOENIX: 1AO17


    GUOMAT NumberAssembly NumberMax OD @100 PSIG (Inches)Design Load Range (pounds)Design Height Range (Inches)Usable Stroke (Inches)Min Comp Height (Inches)Max Ext Height (Inches)Bumper IncludedApproximate Isolation PercentAir Fitting Size (Inches)
    For a Distributing Frequency Of:
    435 CPM870 CPM1160 CPM1750 CPM
    2B6 5302B6-5306.5180 - 2,0004.5 - 6.54.92.87.7NO859697991/4 C
    2B6 5312B6-5316.5180 - 2,0004.5 - 6.54.92.87.7NO859697991/4 OS
    2B6 5322B6-5326.5180 - 2,0004.5 - 6.54.33.47.7YES859697991/4 OS
    2B6 5352B6-5357300 - 2,2005.0 - 7.06.32.89.1NO929798991/4 OS
    2B6 5362B6-5367300 - 2,2005.0 - 7.05.73.49.1YES929798991/4 OS
    2B7 5402B7-5408230 - 2,5006.0 - 8.06.52.59NO919798991/4 C
    2B7 5412B7-5418230 - 2,5006.0 - 8.06.52.59NO919798991/4 OS
    2B7 5422B7-5428230 - 2,5006.0 - 8.05.73.39YES919798991/4 OS
    2B7 5462B7-5468230 - 2,5006.0 - 8.06.52.59NO919798993/4 C
    2B8 5502B8-5508.8440 - 2,7007.0 - 8.07.22.910.1NO939798991/4 C
    2B8 5522B8-5528.8440 - 2,7007.0 - 8.07.22.910.1NO939798993/4 C
    2B8 5532B8-5538.8440 - 2,7007.0 - 8.07.22.910.1NO939798991/4 OS
    2B8 5542B8-5548.8440 - 2,7007.0 - 8.06.63.510.1YES939798991/4 OS
    2B9 2002B9-20010.3340 - 3,7008.0 - 9.07.63.210.8NO929798991/4 OS
    2B9 2012B9-20110.3340 - 3,7008.0 - 9.073.810.8YES929798991/4 OS
    2B9 2042B9-20410.3340 - 3,7008.0 - 9.07.63.210.8NO929798991/2 OS
    2B9 2052B9-20510.3340 - 3,7008.0 - 9.073.810.8YES929798991/2 OS
    2B9 2082B9-20810.3340 - 3,7008.0 - 9.073.810.8YES929798993/4 OS
    2B9 2162B9-21610.3340 - 3,7008.0 - 9.07.63.210.8NO929798993/4 OS
    2B9 2502B9-25010.3540 - 3,8008.0 - 9.08.73.512.2NO939899991/4 OS
    2B9 2512B9-25110.3540 - 3,8008.0 - 9.08.43.812.2YES939899991/4 OS
    2B9 2532B9-25310.3540 - 3,8008.0 - 9.08.43.812.2YES939899991/4 OS
    2B9 2552B9-25510.3540 - 3,8008.0 - 9.08.43.812.2YES939899991/4 OS
    2B9 2562B9-25610.3540 - 3,8008.0 - 9.08.73.512.2NO939899991/4 OS
    2B9 2632B9-26310.3540 - 3,8008.0 - 9.08.73.512.2NO939899991/2 OS
    2B9 2752B9-27510.3540 - 3,8008.0 - 9.08.73.512.2NO939899993/4 OS
