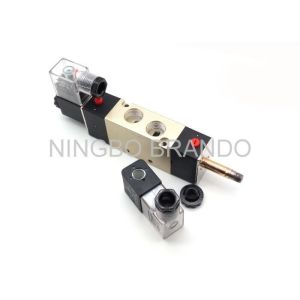

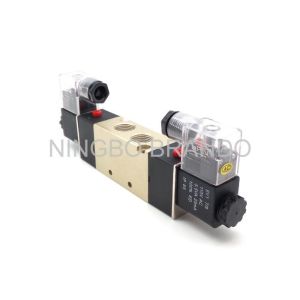

3/8" Port Size Double-head Double-position Close Type Pneumatic
Cylinder Valve
The 3/8" Port Size Double-head Double-position Close Type Pneumatic
Cylinder Valve with Two-position Three-way Position and Way No. The
insulation and protection class is F.The shortest Excitation Times
is 0.05 second. We will send you the product in 8 working days
after your order.
Quick Informations:
1. Power Consumption: +/-10%
2. Power Consumption: AC 4.5VA DC 3W
3. Highest Action Frequency: 5 Cycle/Sec
4. Port Size: Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"
Specification of 4V320-10 Pneumatic Cylinder Valve:
| Position and Way No. | Two-position Three-way |
| Shortest Excitation Time | 0.05 Second |
| Max. Pressure Resistance | 1.0MPa |
| Motion Pattern | Inner Guide Type |
| Working Mdium | 40 Micron Filtered Air |
| Insulation and Protection Class | F Class. IP65 |
| Wiring Form | Lead Wire or Connector Type |
| Voltage Range | 5-50°C |
| Working Pressure | 0.15-0.8MPa
|
Advantages of the Valve:
1. Special technology for bore, low friction force, low start
pressure.
2. It's a little bit dustproof
3. Quicky directional changing, fast speed.
4. The power is low, only 3W.
5. Excellent material, precise process, fine shape.
6. Wide application and can be used in many area
The Structure Diagram:
The questions you may want to know:
About samples:
We can provide samples production and service. Usually 4 to 7 days,
the sample can be sent to your hands. We will choose the shipping
way as you required: by sea, by air, by express ect. Any question
about samples, please contact us.
For OEM products
We will finish the production within 20 days after payment has been
confirmed.
Quality control:
All the products are calibrated with real working condition, and
tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
About delivery and shipping
We will choose the delivery way as you required: by sea, by air, by
express ect. Save your cost is our
mission.
Some pictures to show by different way:
We produce other kind valve and you can choose the different color
coil you like
Welcome your any question, we will response at once. We also can
produce as customized.
Welcome your drawing or sample.
